Expeller / Press / Oil Extraction Machine
Leading Manufacturers, Exporters, Wholesaler and Trader of Cashew Nut Shell Liquid Oil Extraction Machine, Castor Seed Oil Extraction Machine, Coconut Oil Extraction Machine, Corn Oil Extraction Machine, Cottonseed Oil Extraction Machine, Fully Automatic Commercial Oil Expeller Machine, Fully Automatic Commercial Oil Press Machine, Fully Automatic Industrial Oil Extraction Machine, Fully Automatic Industrial Oil Processing Machine, groundnut oil extraction machine, Large Scale Commerical Oil Expeller Machine, Large Scale Industrial Oil Extraction Machine, Mustard Seed Oil Expeller Machine, Oil Expeller Machine, Oil Extraction Machine, oil extractor machine, OIL EXTRUDER MACHINE, Oil Press Machine, oil pressing machine, Oil Processing Machine, Oil Production Machine, Oilseed Crushing Machine, Palm Kernel Oil Expeller Machine, Screw Oil Press Machine, Sesame Seed Oil Extraction Machine, Shea Butter / Shea Nut Oil Extraction Machine, Soybean Oil Extraction Machine and Sunflower Seed Oil Extraction Machine from Ludhiana.
| Business Type | Manufacturer, Exporter, Supplier |
| I Deal In | New Only |
| Type | Cold Press Oil Machine |
| Usage | Multi-Seed Oil Extraction |
| Brand Name | GOYUM |
| Operating Type | Semi Automatic |

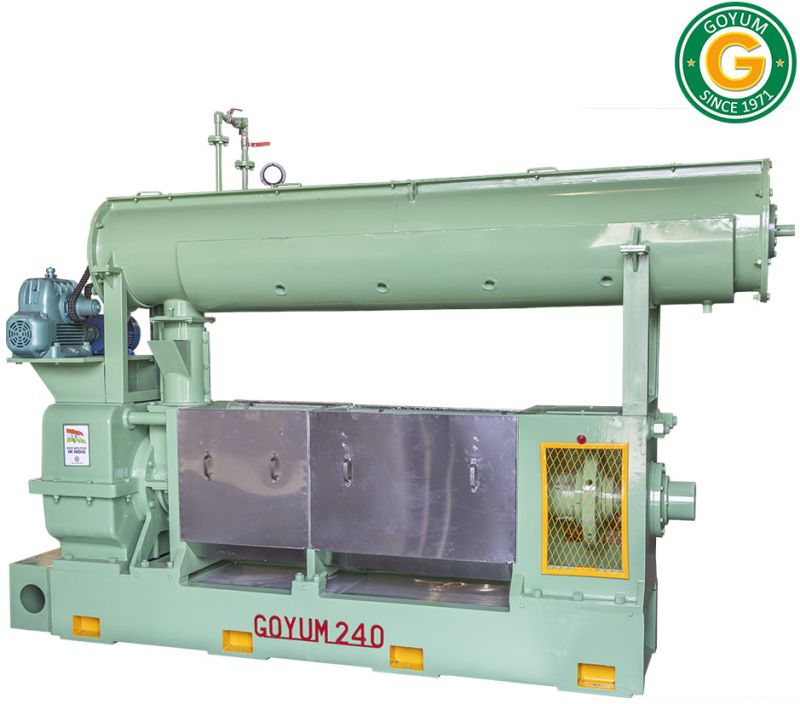

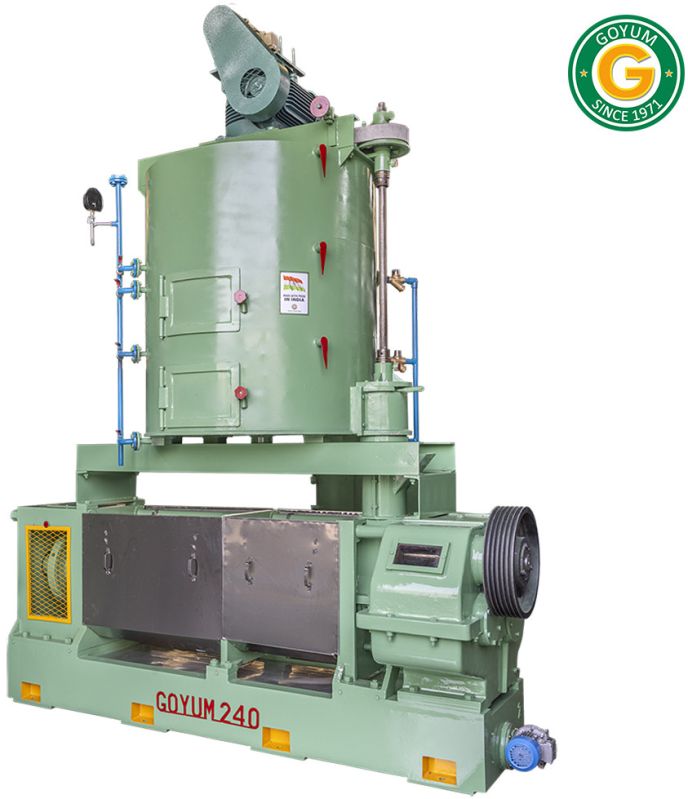

| Model Number | GOYUM 240 |
| Country of Origin | India |
| Crushing Capacity | 20 – 25 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 75 HP, 960 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Feed End: Dia 9 |
| Weight | 5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle |
| Dimension (LxBxH) | 10’2” x 4’1” x 7’7” |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

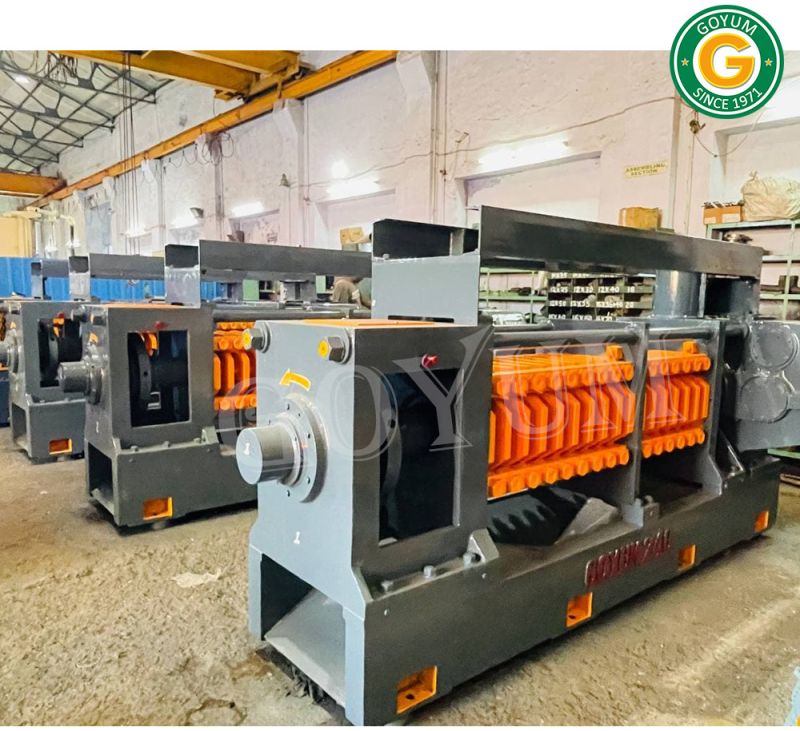

Cashew Nut Shell Liquid Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
This Oil Extraction Machine comes with Round Kettle / Cooker for Export Market.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 24" Long, Discharge End: - Size: Ø 7" x 36" Long |
|
Worm Assembly |
Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Round Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement) |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | GOYUM |
| Operating Type | Semi Automatic |
| Usage | Multi Oilseed Extraction |
| Type | Oil Press |
| Phase | Three Phase |
| Country of Origin | India |
| Model Number | GOYUM MK 4 |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Weight | 4500 kgs |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

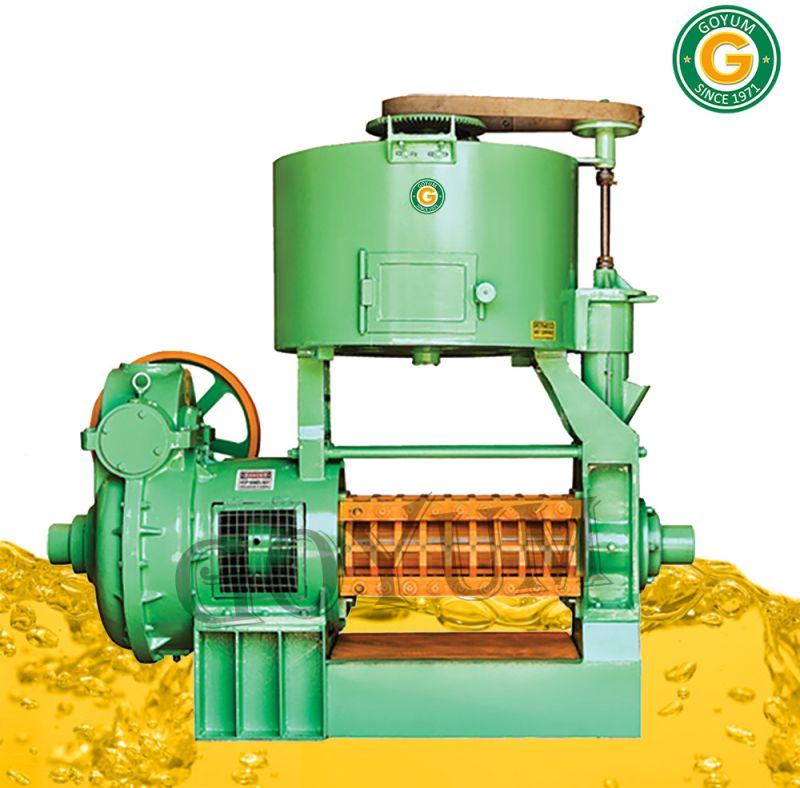

Castor Seed Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | GOYUM |
| Automatic Grade | Semi Automatic |
| Model Number | GOYUM MK 5C |
| Country of Origin | India |
| Crushing Capacity | 18 – 20 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 7” X 44 |
| Dimension (LxBxH) | 11’8” x 4’3” x 11’10” |
| Weight | 5700 kgs |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

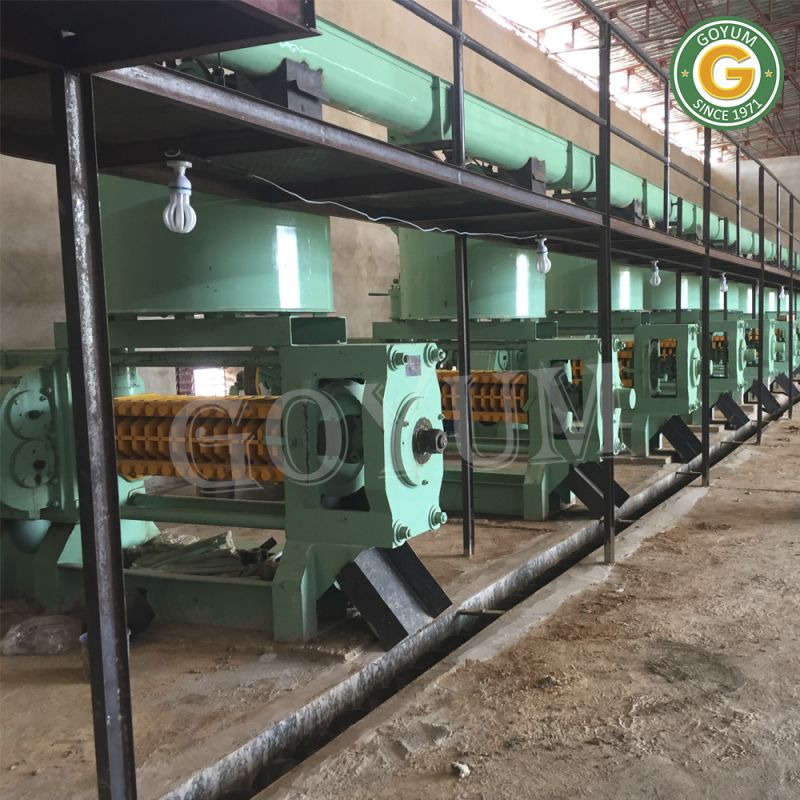

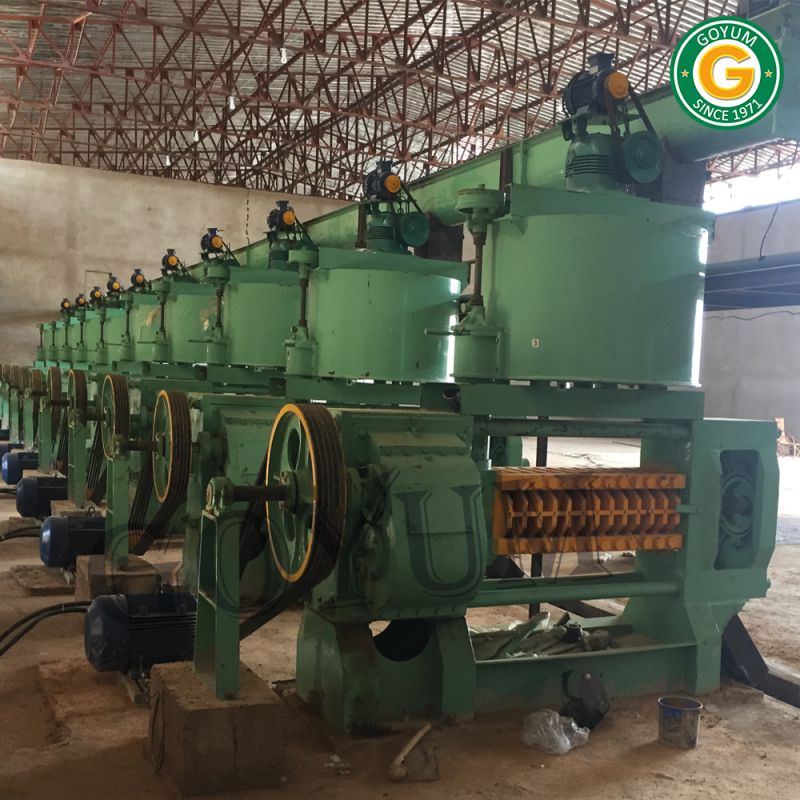

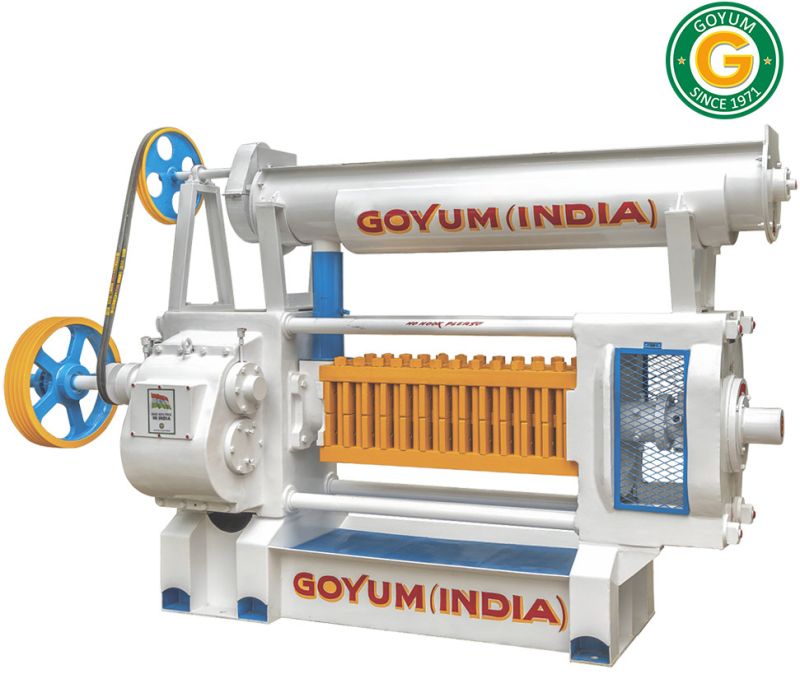

Coconut Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size: Ø7” X 44” Long, |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three or Four Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Power | 1-3kw |
| Driven Type | Electric |
| Brand Name | GOYUM |
| Automation Grade | Semi Automatic |

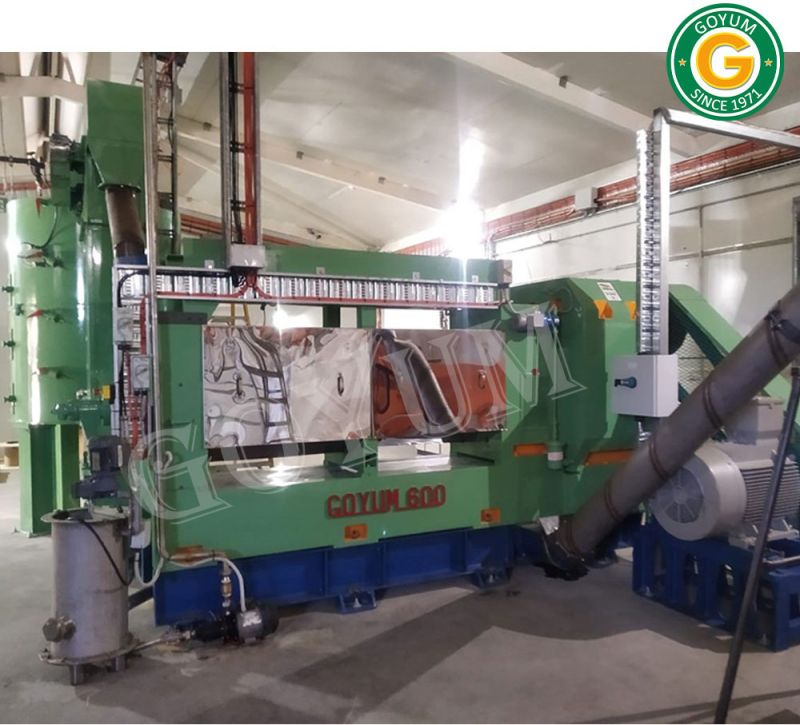

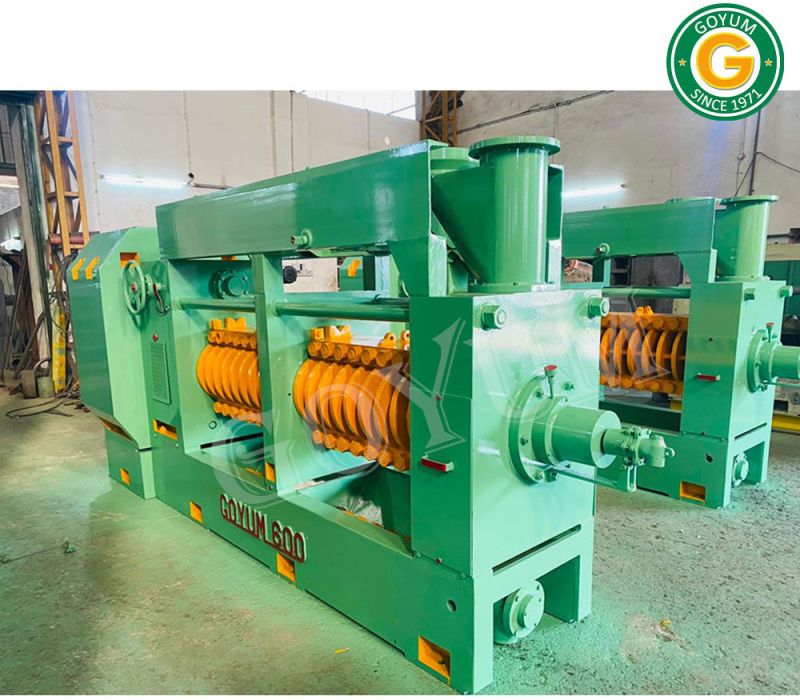

| Model Number | GOYUM 600 |
| Crushing Capacity | 40 - 45 Ton in 24 Hours in Pre-Pressing, 30 - 35 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 100 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 20 HP, 1440 RPM |
| Dimension (LxBxH) | 14’ x 5’6” x 16’6” |
| Weight | 11,500 kgs |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 20 – 25 days, but confirmed delivery time will be provided at the time of confirmation of orde |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

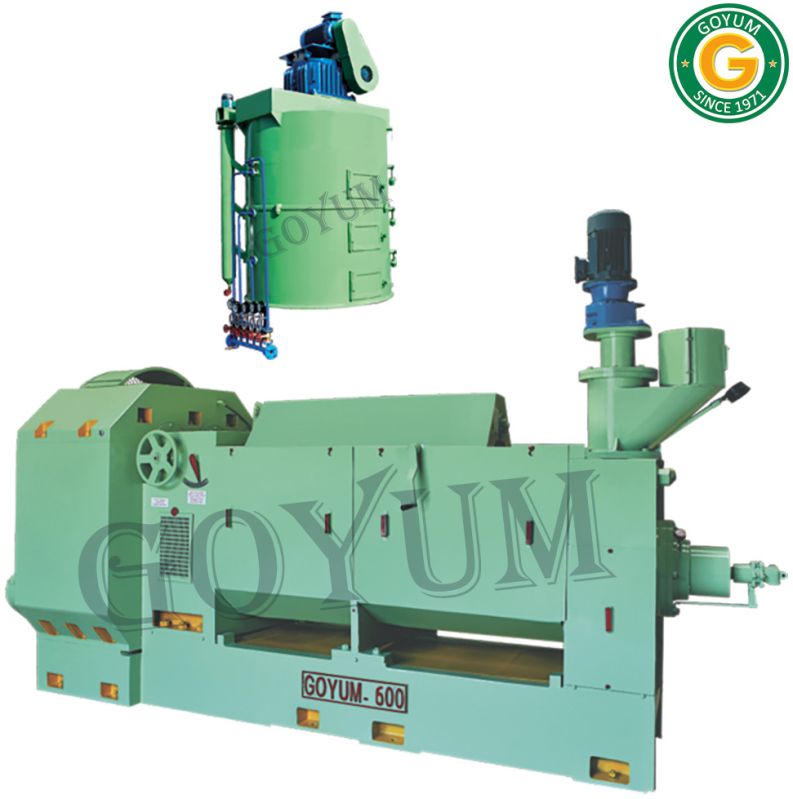

Corn Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 36" Long, Discharge End: - Size: Ø 8" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Oil Press |
| Operating Type | Semi Automatic |
| Brand Name | GOYUM |
| Model | GOYUM MK 4 |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Weight | 4500 kgs |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

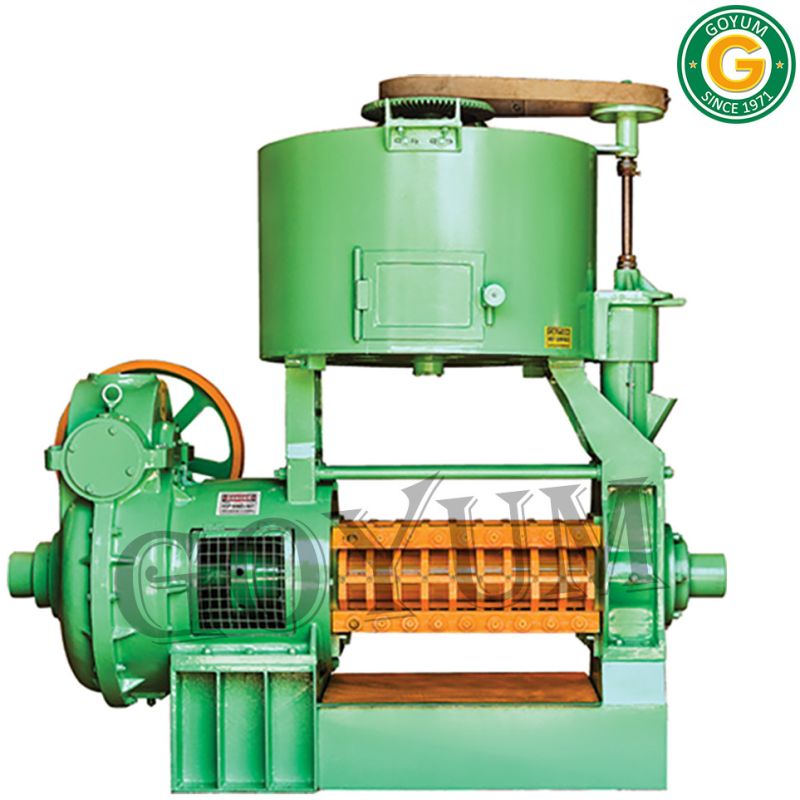

Cottonseed Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Operating Type | Semi Automatic |
| Condition | New |
| Brand Name | GOYUM |
| Model | GOYUM MK 4 |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Weight | 4500 kgs |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Fully Automatic Commercial Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | GOYUM |
| Condition | New |
| Automatic Grade | Semi-Automatic |

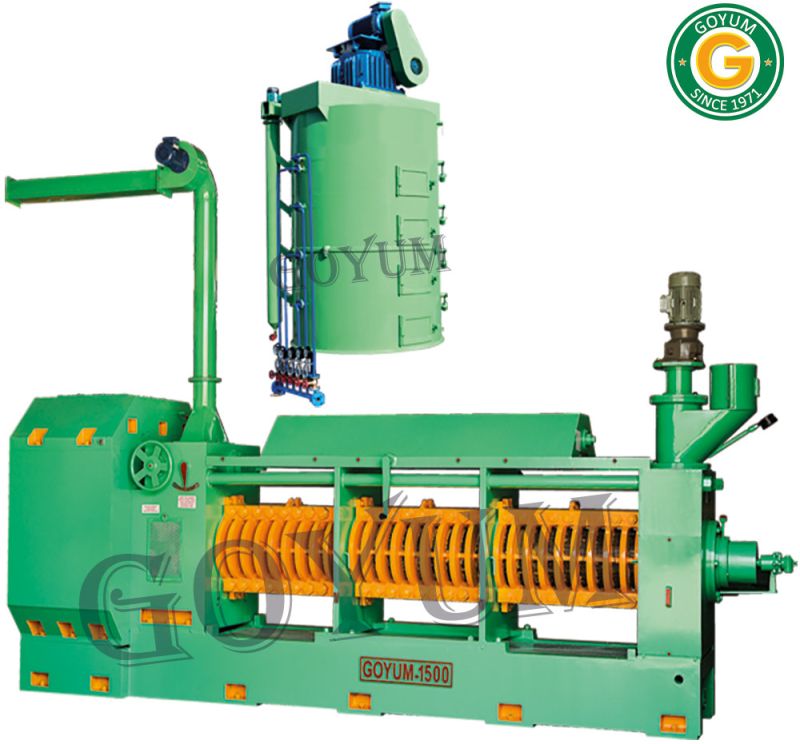

| Model | GOYUM 1500 |
| Crushing Capacity | 110 – 125 Ton in 24 Hours in Pre-Pressing, 45 – 55 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 150 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 25 HP, 1440 RPM |
| Dimension (LxBxH) | 30’ x 11’6” x 19’6” |
| Weight | 25,500 kgs (Expeller, Cooker and Supporting Structure |
| Port | Mumbai / Mundra |
| Delivery Time | 25 – 30 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Fully Automatic Commercial Oil Press Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 12" x 36" Long, Middle:Size: Ø 11" x 36" Long, Discharge End: - Size: Ø 10" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
5 Stages with Steam Jackets of Ø66” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Chamber Lifting |
Manual |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.) |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | GOYUM |
| Operating Type | Semi Automatic |

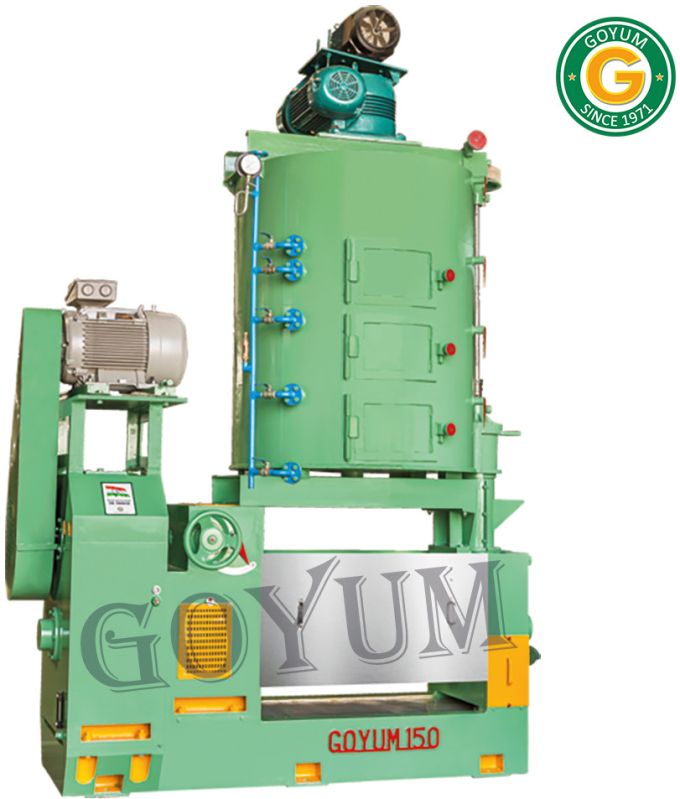

| Model Number | GOYUM 150 |
| Length | 13 Feet (With Four Stage Kettle),11.5 Feet (With Three Stage Kettle),8.6 Feet |
| Crushing Capacity | 15 – 17 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 40 HP, 1440 RPM |
| Kettle Motor | For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM |
| Chamber Size | Dia 7.5” X Dia 6.5” X 45” Long |
| Breadth | 4.7 feet |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

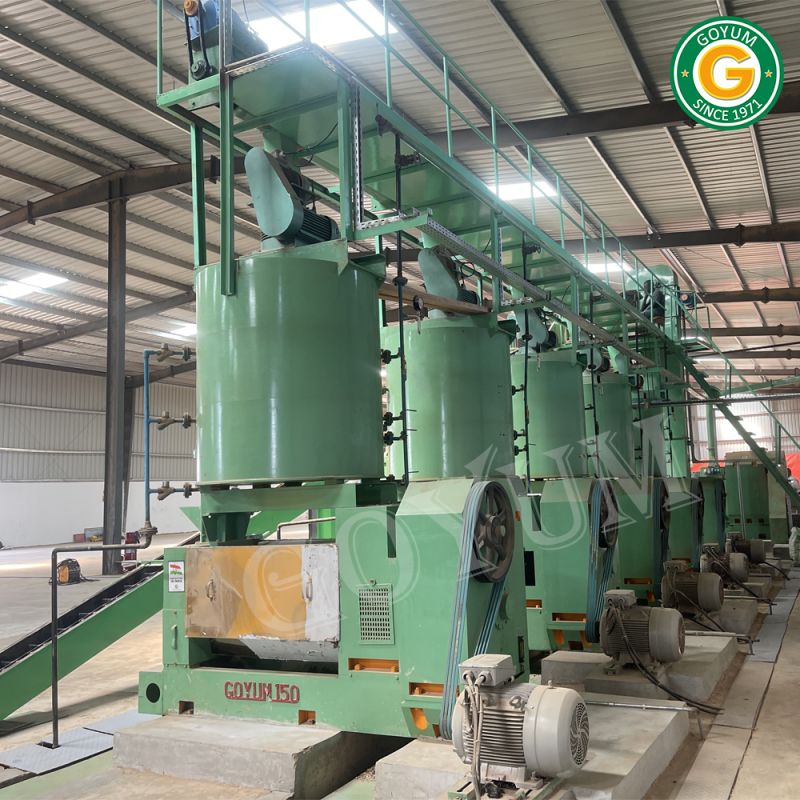

Fully Automatic Industrial Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Condition | New |
| Country of Origin | India |
| Automatic Grade | Semi Automatic |
| Model | GOYUM 600 |
| Crushing Capacity | 40 - 45 Ton in 24 Hours in Pre-Pressing, 30 - 35 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 100 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 20 HP, 1440 RPM |
| Dimension (LxBxH) | 14’ x 5’6” x 16’6” |
| Weight | 11,500 kgs |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Fully Automatic Industrial Oil Processing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 36" Long, Discharge End: - Size: Ø 8" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Condition | New |
| Brand Name | GOYUM |
| Operating Type | Automatic |
| Model | GOYUM 240 |
| Crushing Capacity | 20 – 25 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 75 HP, 960 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Feed End: Dia 9" x 24" Long, Discharge End: Size: Dia 7" x 36" Long |
| Weight | 5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

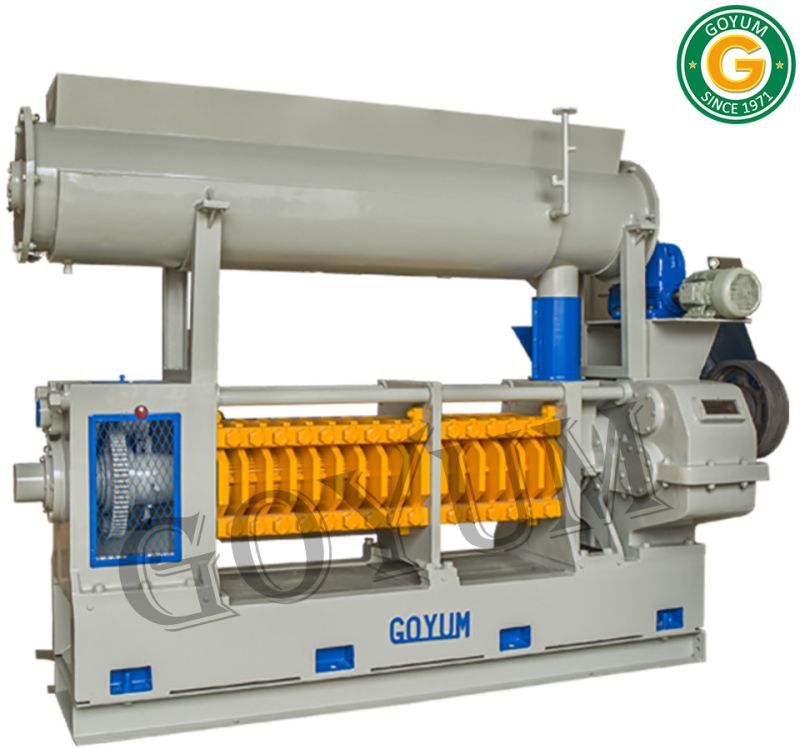

Groundnut Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
This Oil Extraction Machine comes with Round Kettle / Cooker for Export Market.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 24" Long, Discharge End: - Size: Ø 7" x 36" Long |
|
Worm Assembly |
Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Round Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement) |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| I Deal In | NEW |
| Country of Origin | India |
| Type | Oil Press |
| Model Number | GOYUM 1500 |
| Brand Name | GOYUM |
| Crushing Capacity | 110 – 125 Ton in 24 Hours in Pre-Pressing, 45 – 55 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 150 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 25 HP, 1440 RPM |
| Weight | 25,500 kgs (Expeller, Cooker and Supporting Structure |
| Dimension (LxBxH) | 30’ x 11’6” x 19’6” |
| Port | Mumbai / Mundra |
| Delivery Time | 25 – 30 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

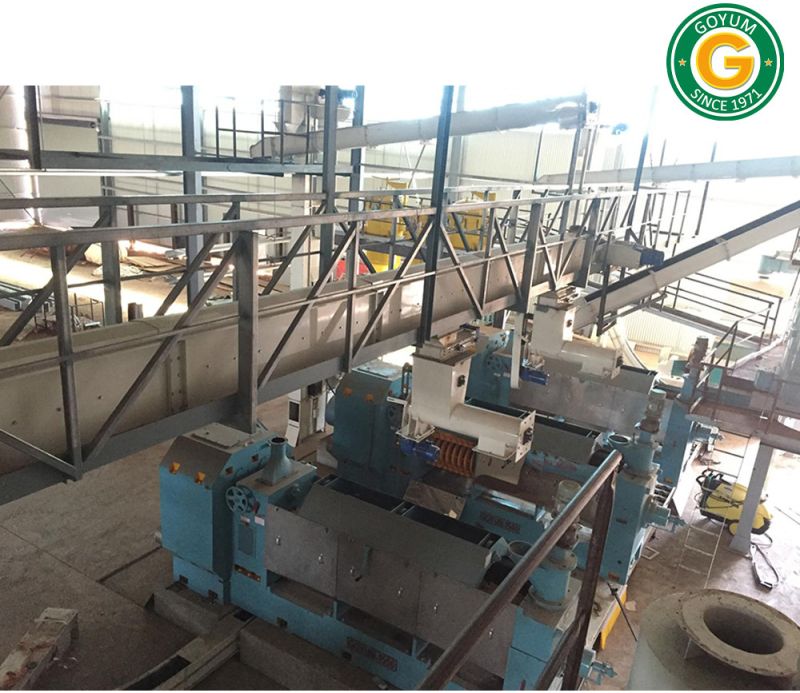

Large Scale Commerical Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 12" x 36" Long, Middle:Size: Ø 11" x 36" Long, Discharge End: - Size: Ø 10" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
5 Stages with Steam Jackets of Ø66” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Chamber Lifting |
Manual |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.) |
| Business Type | Manufacturer, Exporter, Supplier |
| Capacity | 230 – 250 Ton In 24 Hours In Pre-Pressing,(Differs With The Density Of Oilseeds & Nuts And Quantity Of Oil In It.) |
| I Deal In | NEW |
| Model Number | GOYUM 2400 |
| Brand Name | GOYUM |
| Expeller Motor | 3 Phase, 250 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 50 HP, 1440 RPM |
| Dimension (LxBxH) | 31' x 7'4 |
| Weight | 46,000 kgs (Expeller, Cooker and Supporting Structure |
| Port | Mumbai / Mundra |
| Delivery Time | 35 – 40days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

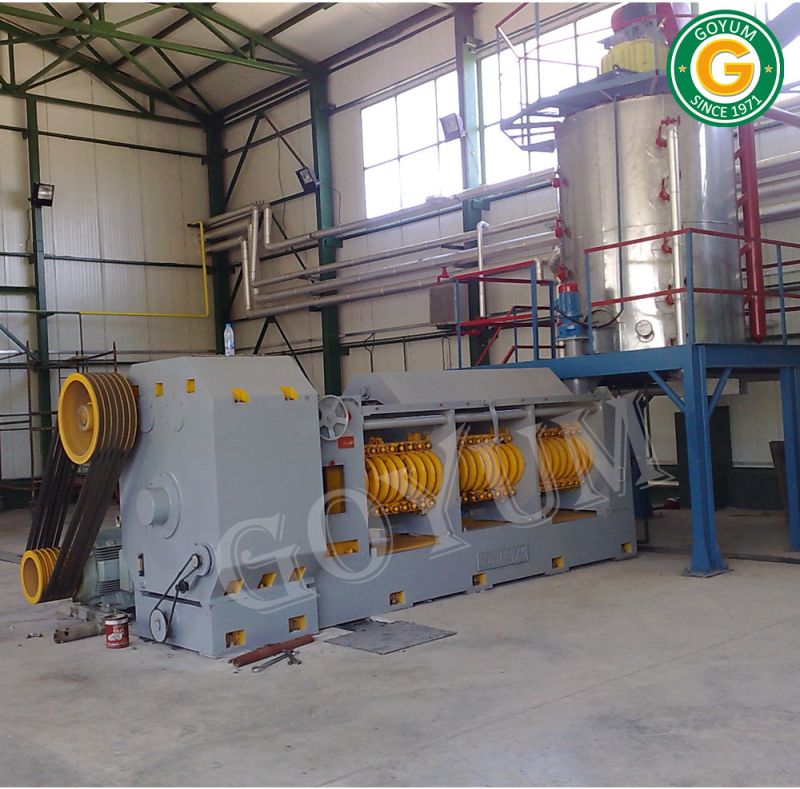

Large Scale Industrial Oil Extraction Machine is used to extract oil from various types of edibles as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 16" x 50" Long, Discharge End:Size: Ø 16" x 50" Long, Opening and closing of chamber is motorized. |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Chamber Lifting |
Arrangement is motorized |
|
Round Kettle (Cooker) |
8 Stages with Steam Jackets of Dia. 78” for efficient cooking of seed. Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure fitted with kettle driving Gearbox and Motor. |
|
Cake Thickness |
Can be Adjusted manually after stopping the machine |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Oil Press |
| I Deal In | NEW |
| Model Number | GOYUM MK 4 |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Weight | 4500 kgs |
| Brand Name | GOYUM |
| Port | Mumbai / Mundra |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

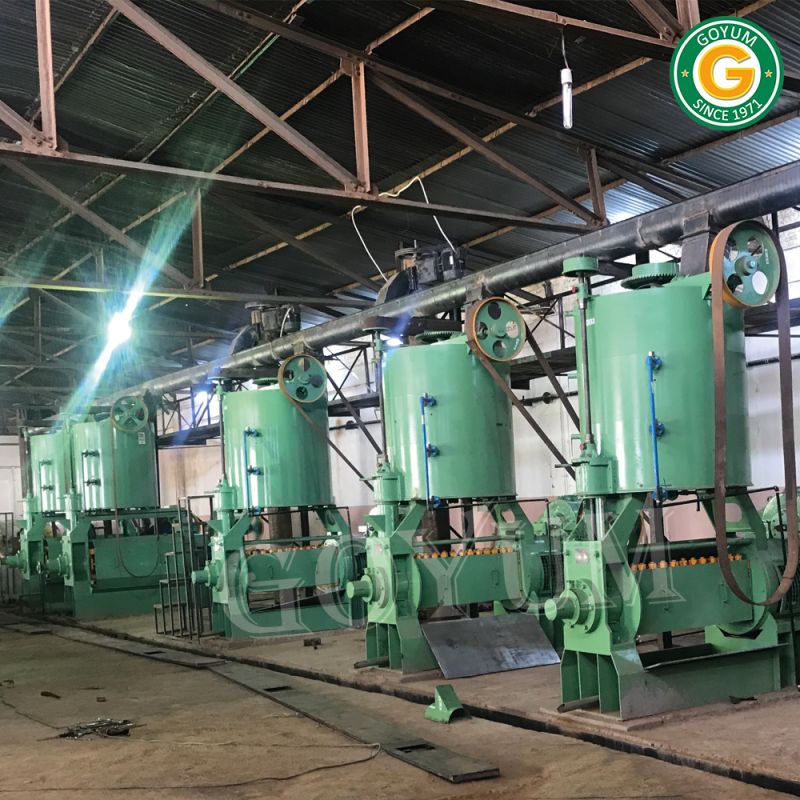

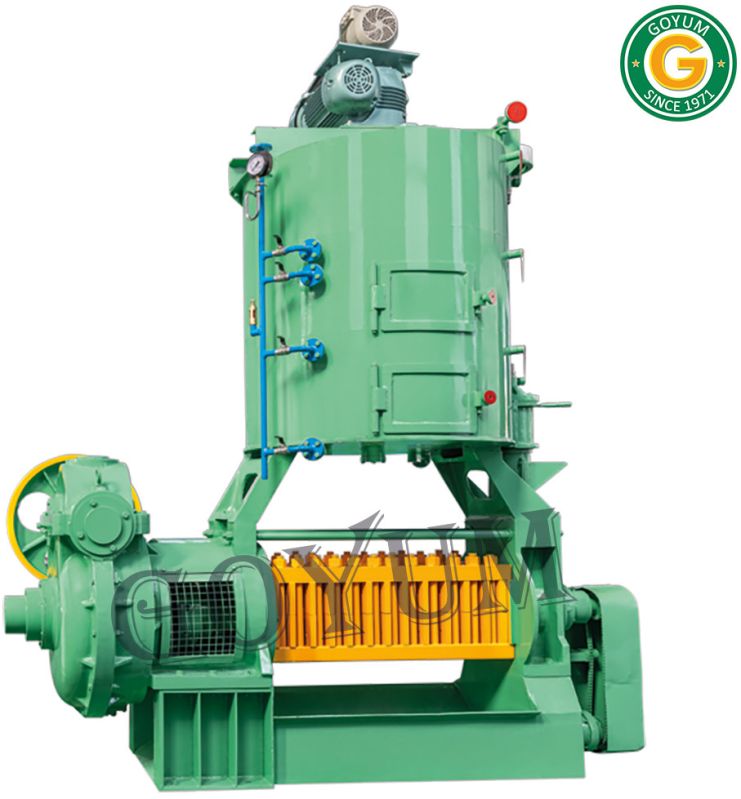

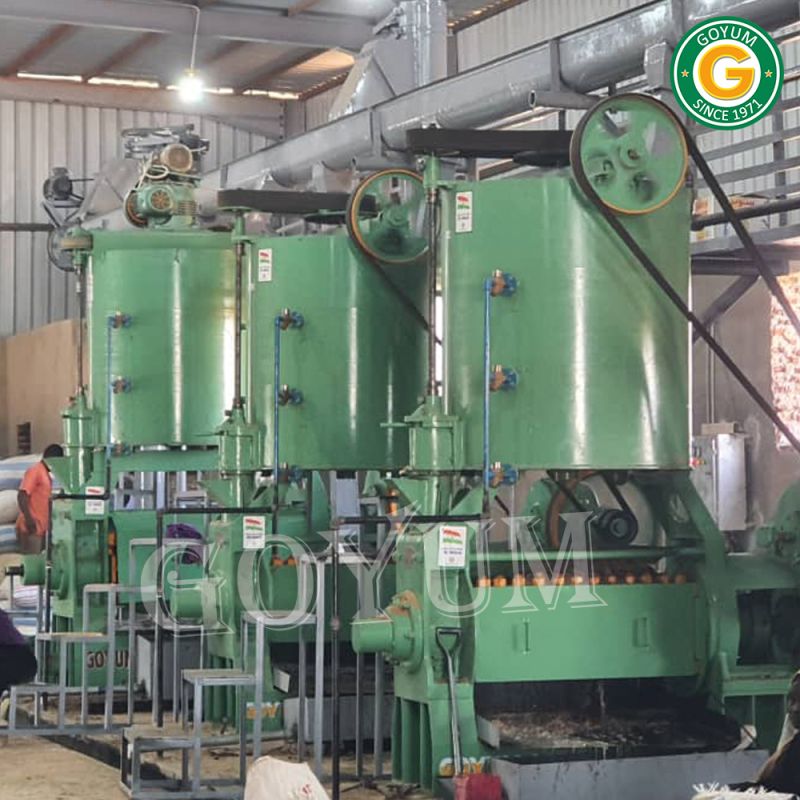

Mustard Seed Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Operating Type | Semi Automatic |
| Brand Name | GOYUM |
| Model | GOYUM MK 4 |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Weight | 4500 kgs |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Port | Mumbai / Mundra |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

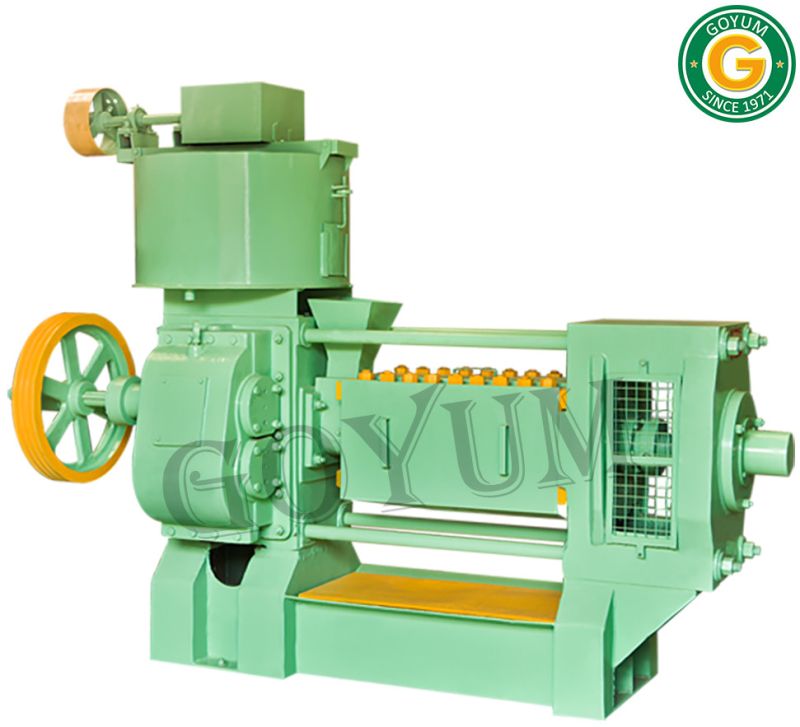

Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Length | 8’6" |

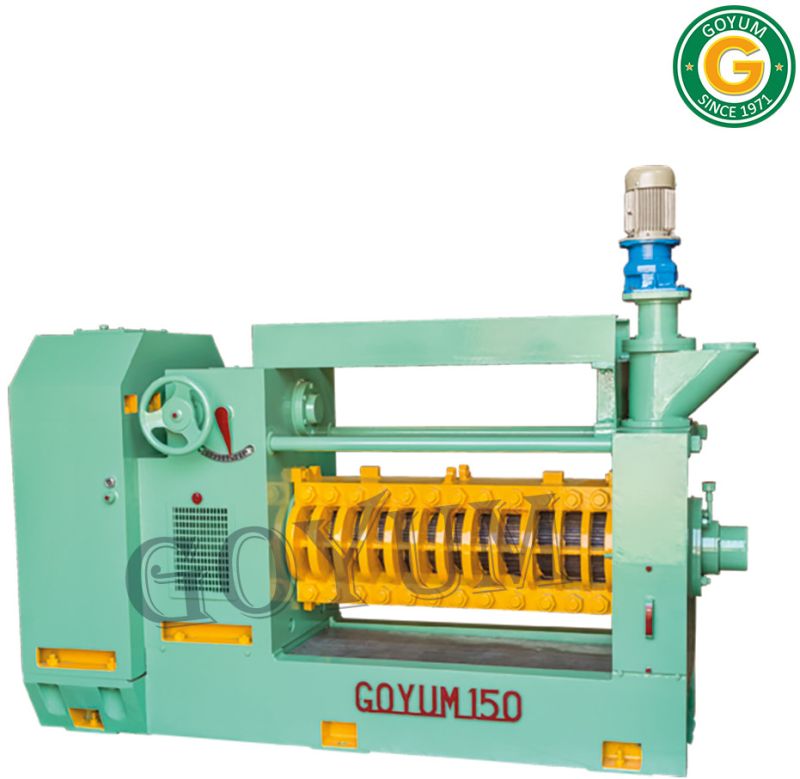

| Model Number | GOYUM 150 |
| Usage | Multi Oilseeds |
| Operating Type | Semi Automatic |
| Brand Name | GOYUM |
| Crushing Capacity | 15 – 17 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 40 HP, 1440 RPM |
| Kettle Motor | For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM |
| Chamber Size | Dia 7.5” X Dia 6.5” X 45” Long |
| Height | 13' (With Four Stage kettle), 11'5 |
| Weight | 4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle) |
| Breadth | 4'7" |
| Port | Mumbai / Mundra |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Brand Name | GOYUM |
| Automation Grade | Semi Automatic |
| Model Number | GOYUM MK 3 |
| Crushing Capacity | 8 – 10 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 30 HP, 1440 RPM |
| Chamber Size | Dia 6” x 33” Long |
| Dimension (LxBxH) | 8’6” x 4’1” x 8’8” |
| Weight | 4200 kgs |
| Port | Mumbai / Mundra |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Oil Extractor Machine is used to extract oil from various type of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Three Sections. Vertically fitted. Size: Ø6" X 33” Long. |
|
Worm Assembly |
Case Hardened |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Single Stage. With Heating Arrangement (as required). Pipe fitting contains all required accessories. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Brand Name | GOYUM |
| Automatic Grade | Semi Automatic |
| Model Number | GOYUM 60 |
| Crushing Capacity | 5 – 6 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 20 HP, 960 RPM |
| Chamber Size | Dia 5” x 30” Long |
| Dimension (LxBxH) | 8’12” x 2’11” x 6’12” |
| Weight | 1850 kgs |
| Port | Mumbai / Mundra |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

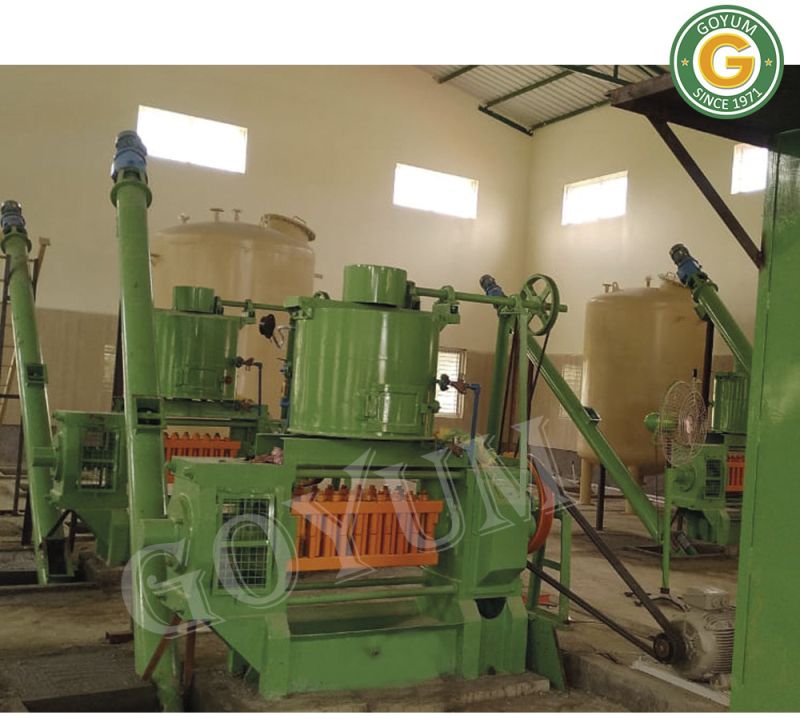

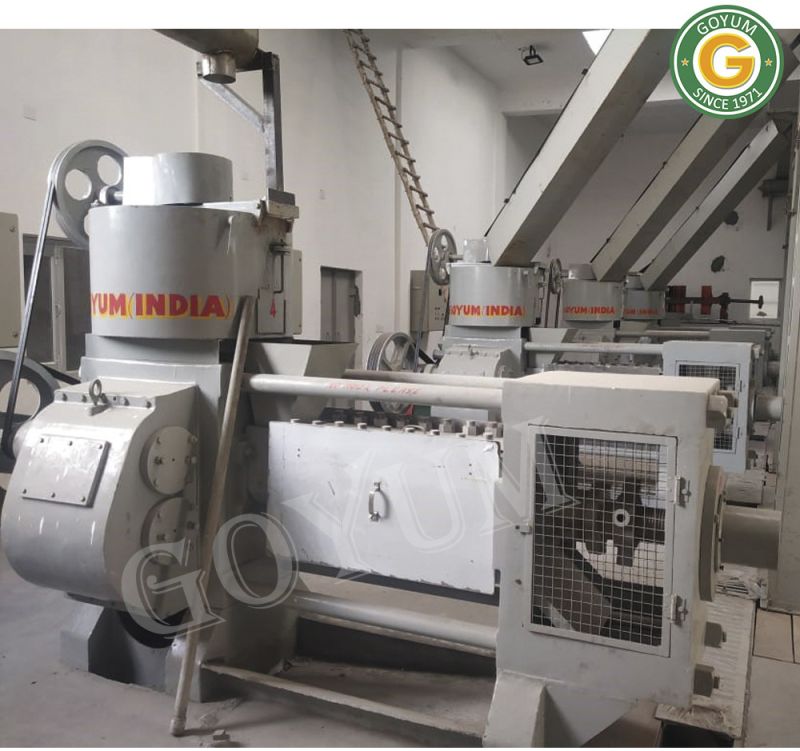

OIL EXTRUDER MACHINE is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction with Mild steel Helical Gears and Pinions |
|
Chamber |
Steel Fabricated of Three Sections. Horizontally fitted |
|
Worm Assembly |
Case Hardened |
|
Feeding Drum |
Single Stage. With & Without Heating Arrangement (as required). |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Oil Press |
| Power | 175 Hp |
| Material | Mild Steel |
| Brand Name | GOYUM |
| Model | GOYUM 1500 |
| Crushing Capacity | 110 – 125 Ton in 24 Hours in Pre-Pressing, 45 – 55 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 150 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 25 HP, 1440 RPM |
| Dimension (LxBxH) | 30’ x 11’6” x 19’6” |
| Weight | 25,500 kgs (Expeller, Cooker and Supporting Structure |
| Port | Mumbai / Mundra |
| Delivery Time | 25 – 30 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Oil Press Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 12" x 36" Long, Middle:Size: Ø 11" x 36" Long, Discharge End: - Size: Ø 10" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
5 Stages with Steam Jackets of Ø66” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Chamber Lifting |
Manual |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.) |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Automatic Grade | Semi Automatic |
| Brand Name | GOYUM |
| Model | GOYUM 600 |
| Crushing Capacity | 40 - 45 Ton in 24 Hours in Pre-Pressing, 30 - 35 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 100 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 20 HP, 1440 RPM |
| Dimension (LxBxH) | 14’ x 5’6” x 16’6” |
| Weight | 11,500 kgs |
| Port | Mumbai / Mundra |
| Delivery Time | 20 – 25 days, but confirmed delivery time will be provided at the time of confirmation of orde |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Oil Pressing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 36" Long, Discharge End: - Size: Ø 8" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | GOYUM |
| Operating Type | Semi Automatic |
| Type | Oil Press |
| Country of Origin | India |
| Model | GOYUM MK 4 |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Weight | 4500 kgs |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Oil Processing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Condition | New |
| Automatic Grade | Semi Automatic |
| Weight | 5200 Kgs With Long Kettle,6500 Kgs With Three Stage Round Kettle |
| Model | GOYUM 240 |
| Crushing Capacity | 20 – 25 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 75 HP, 960 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Feed End: Dia 9 |
| Dimension (LxBxH) | 10’2” x 4’1” x 7’7” |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
GOYUM 240 Oil Production Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
This Oil Extraction Machine comes with Round Kettle / Cooker for Export Market.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 24" Long, Discharge End: - Size: Ø 7" x 36" Long |
|
Worm Assembly |
Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Round Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement) |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | GOYUM |
| Model Number | GOYUM MK 5C |
| Country of Origin | India |
| I Deal In | New Only |
| Crushing Capacity | 18 – 20 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 7” X 44 |
| Dimension (LxBxH) | 11’8” x 4’3” x 11’10” |
| Weight | 5700 kgs |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Oilseed Crushing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size: Ø7” X 44” Long, |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three or Four Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Palm Oil Milling Machine |
| Automatic Grade | Semi Automatic |
| Brand Name | GOYUM |
| I Deal In | NEW |
| Model | GOYUM 15 |
| Capacity 1st Pressing | 15 – 17 Ton in 24 Hours |
| Capacity 2nd Pressing | 11 – 12 Ton in 24 Hours |
| Expeller Motor | 60 / 75 HP, 960 RPM |
| Dimension (LxBxH) | 10’5” x 4’65” x 4’67” |
| Weight | 5600 kgs |
| Port | Mumbai / Mundra |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
GOYUM 15 Oil Extraction Machine is used to extract oil from Palm Kernel.
|
Bodies and Base |
Material: Cast Iron |
|
Gearbox |
Triple Reduction (Make: Premium / SEW) |
|
Chamber |
Steel Fabricated from Mild Steel Plates |
|
Worm Assembly |
Forged Steel. (Stainless Steel is optional.) |
|
V – Belts |
Make: Fenner or equivalent |
|
Main Worm Shaft |
Grade: En 19 |
|
Feed Hopper |
Cast Steel |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
|
Bearings |
Make: FAG or SKF |
|
Gear Couplings |
Make: Goyum |
Crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | GOYUM |
| Operating Type | Semi Automatic |
| Length | 8’6 |
| Country of Origin | India |
| Model | GOYUM 150 |
| Crushing Capacity | 15 – 17 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 40 HP, 1440 RPM |
| Kettle Motor | For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM |
| Chamber Size | Dia 7.5” X Dia 6.5” X 45” Long |
| Breadth | 4’7” |
| Height | 13’ (With Four Stage kettle), 11’5” feet (With Three Stage Kettle) |
| Weight | 4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle) |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Screw Oil Press Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | GOYUM |
| Model Number | GOYUM MK 5C |
| Specialities | Long Life, Easy To Operate |
| Type | Oil Press |
| Country of Origin | India |
| I Deal In | NEW |
| Crushing Capacity | 18 – 20 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 7” X 44 |
| Dimension (LxBxH) | 11’8” x 4’3” x 11’10” |
| Weight | 5700 kgs |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

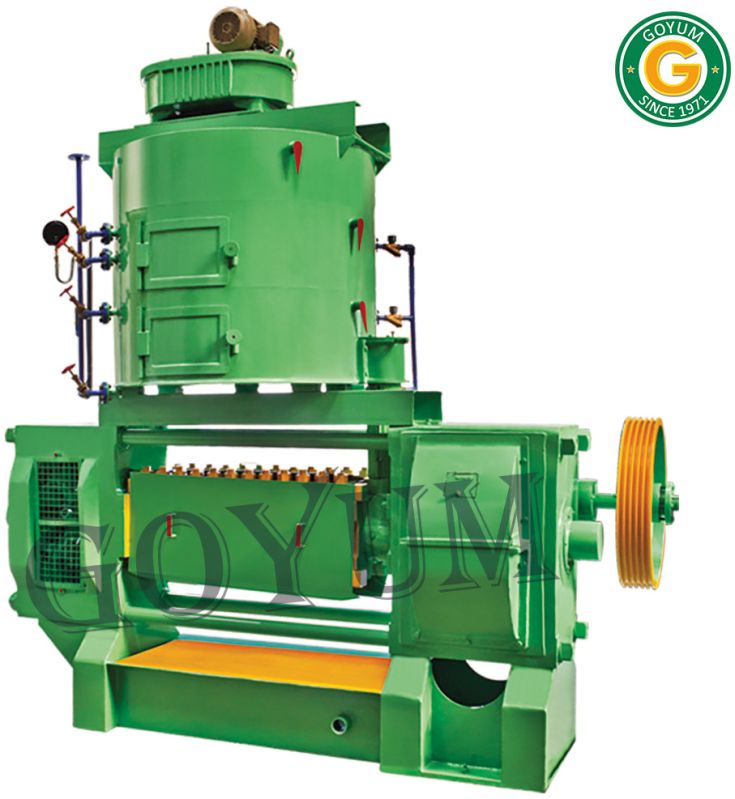

Sesame Seed Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size: Ø7” X 44” Long, |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three or Four Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Driven Type | Electric |
| Brand Name | GOYUM |
| Crushing Capacity | 110 – 125 Ton in 24 Hours in Pre-Pressing, 45 – 55 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 150 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 25 HP, 1440 RPM |
| Dimension (LxBxH) | 30’ x 11’6” x 19’6” |
| Weight | 25,500 kgs (Expeller, Cooker and Supporting Structure |
| Port | Mumbai / Mundra |
| Delivery Time | 25 – 30 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Shea Butter / Shea Nut Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 12" x 36" Long, Middle:Size: Ø 11" x 36" Long, Discharge End: - Size: Ø 10" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
5 Stages with Steam Jackets of Ø66” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Chamber Lifting |
Manual |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.) |
| Business Type | Manufacturer, Exporter, Supplier |
| Automation Grade | Semi Automatic |
| Model Number | GOYUM 150 |
| Length | 8’6” |
| Country of Origin | India |
| Crushing Capacity | 15 – 17 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 40 HP, 1440 RPM |
| Kettle Motor | For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM |
| Chamber Size | Dia 7.5” X Dia 6.5” X 45” Long |
| Breadth | 4’7” |
| Height | 13’ (With Four Stage kettle), 11’5” feet (With Three Stage Kettle) |
| Weight | 4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle) |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |
Soybean Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Length | 8’6” |
| Model Number | GOYUM 150 |
| Operating Type | Semi Automatic |
| Brand Name | GOYUM |
| Crushing Capacity | 15 – 17 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 40 HP, 1440 RPM |
| Kettle Motor | For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM |
| Chamber Size | Dia 7.5” X Dia 6.5” X 45” Long |
| Breadth | 4’7” |
| Height | 13’ (With Four Stage kettle), 11’5” feet (With Three Stage Kettle) |
| Weight | 4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle) |
| Port | Mumbai / Mundra |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Preferred Buyer From
| Location | Worldwide |

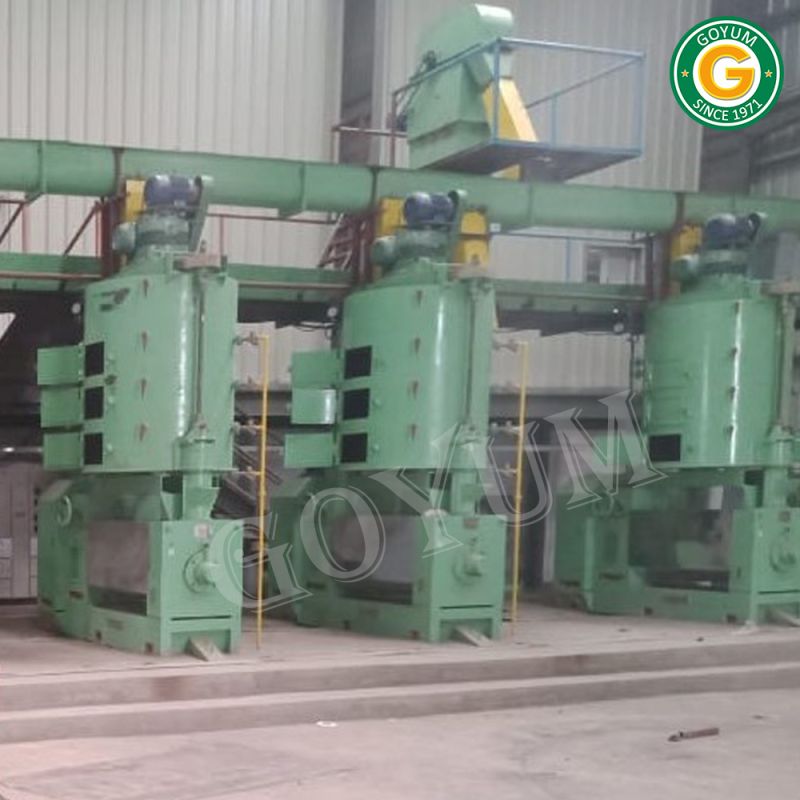

Sunflower Seed Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
