Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Voltage | 220V, 380V, 440V |
| Warranty | 1 Year Against Manufacturing Defects |
| Machine Weight | 25,500 Kgs (Expeller,Cooker And Supporting Structure) |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details

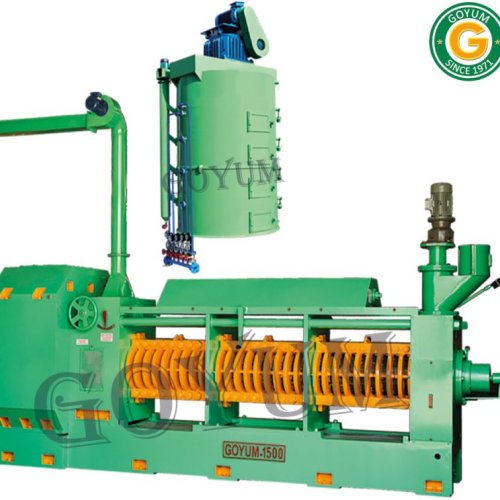

Large Scale Commercial Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 12" x 36" Long, Middle:Size: Ø 11" x 36" Long, Discharge End: - Size: Ø 10" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
5 Stages with Steam Jackets of Ø66” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Chamber Lifting |
Manual |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.) |
Technical Specification
| Model | Capacity | Motor Power | Length | Breadth | Height |
| GOYUM 1500 | 125 – 150 TPD* in Pre-pressing 45 – 55 TPD* in Single & Final Crushing | 3 Phase 170 HP for Expeller | 16 ft | 4.2 ft | 6.6 ft |
| Cooker/Kettle | 3 Phase 25 HP for Kettle | 7 ft | 7 ft | 12.6 ft |
