63.75 Lac - 72.25 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Machine Type | Both Hot and Cold press |
| Automation Grade | Semi-Automatic,Semi Automatic |
| Click to view more | |
Product Details
Phase Type
Three Phase
Material
Mild Steel
Oil Extraction Method
Both Hot & Cold
Seeds Supported
Multi-Seed
Oil Yield Efficiency
High
Installation Type
Floor Mounted
Usage/Application
Industrial Use,Multi Seed Oil Extraction
Type
Oil Press
Brand
GOYUM
Certification
ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
Weight
11,500 kgs
Condition
New
Packaging Type
Wooden Box
Driven Type
Electric
Warranty
1 Year Against Manufacturing Defects
Country of Origin
India
Operating Type
Semi Automatic
Features
High Performance
Crushing Capacity
40 - 45 Ton in 24 Hours in Pre-Pressing, 30 - 35 Ton in 24 Hours in Single & Final Crushing
Model
GOYUM 600
Dimension (LxBxH)
14’ x 5’6” x 16’6”
Expeller Motor
3 Phase, 100 HP, 1440 RPM
Kettle Motor
3 Phase, 20 HP, 1440 RPM
Port
Mumbai / Mundra
Payment Terms
L/C, T/T
Delivery Time
15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.
Packaging Details
Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

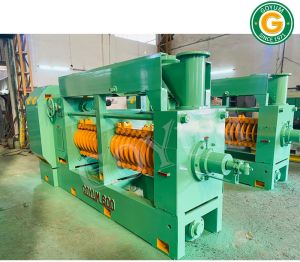

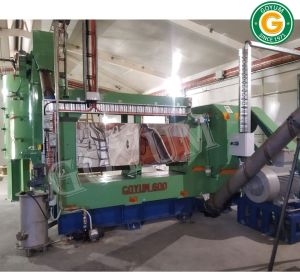

Fully Automatic Industrial Oil Processing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 36" Long, Discharge End: - Size: Ø 8" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
Technical Specification
| Model | Capacity | Motor Power | Length | Breadth | Height |
| GOYUM 600 | 50 – 60 TPD* in Pre-pressing 30 – 35 TPD* in Single & Final Crushing | 3 Phase 100 HP for Expeller | 12 ft | 7 ft | 7 ft |
| Cooker/Kettle | 3 Phase 20 HP for Kettle | 7 ft | 7 ft | 12.6 ft |
