Goyum Screw Press

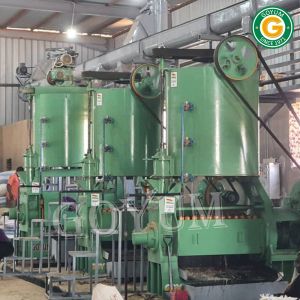

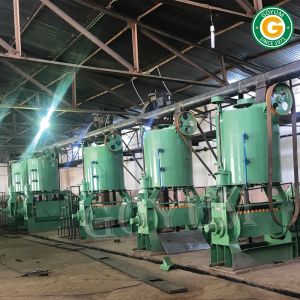

Mustard Seed Oil Expeller Machine


Mustard Seed Oil Expeller Machine
Business Type Manufacturer, Exporter, Supplier

Preferred Buyer From

Location Worldwide

With rich experience and expertise, we have been able to emerge as a leading trusted manufacturer, exporter and supplier of Oil Expeller.



The Oil Expeller machine is used to extract oil from edible as well as non-edible oil seeds & nuts. We check the Oil Expeller on defined quality parameters to provide global standard oil expeller to our valued customers at cost effective prices.



Features :

  • Double Reduction Gear Box of Cast Iron Body and Mild Steel Fabricated Gears.
  • Case Hardened Worm Assembly and Cone Point.
  • Main Worm Shaft can be withdrawn without disturbing the Gear Box.
  • Crammer Shaft gives Extra Cramming of the Seed or Cake in the Feeding Section.
  • Superior Quality of Oil & Cake.
  • Steel Fabricated Base.
  • Chamber Size 44″ X Ø7″ Long.
  • Low Maintenance.
  • Cooking Kettle : 48″ Diameter, 3 or 4 stage Vertical unit with fabricated shell, steam jackets, agitators to prevent burning of seed, level indicator flap, center shaft driven by independent geared motor, steam inlet, condensate outlet, pipes, valves, fittings & all necessary accessories.
Read More...


Technical Specification

Model Capacity Motor Power Length Breadth Height
GOYUM MK-IV 12 – 15 TPD* 3 Phase 40 HP for Expeller 3 Phase 5 HP for Kettle 8.6 ft 6.33 ft 9 ft

(TPD stand for Ton Per Day (in 24 Hours) of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)
