Product Details

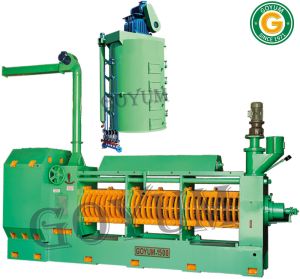

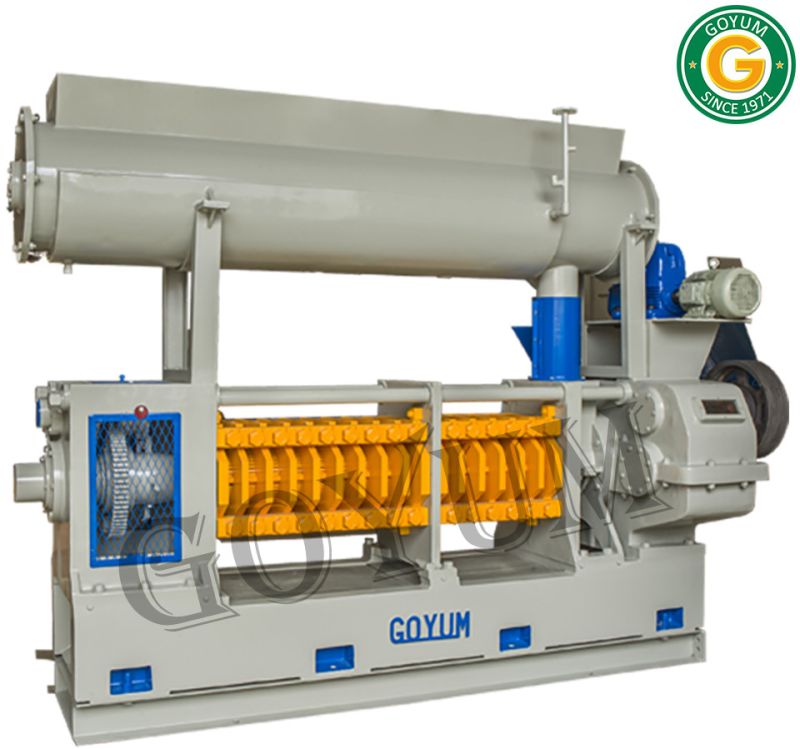

Groundnut Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
This Oil Extraction Machine comes with Round Kettle / Cooker for Export Market.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 24" Long, Discharge End: - Size: Ø 7" x 36" Long |
|
Worm Assembly |
Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Round Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement) |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
Technical Specification
| Model | Capacity | Motor Power | Length | Breadth | Height |

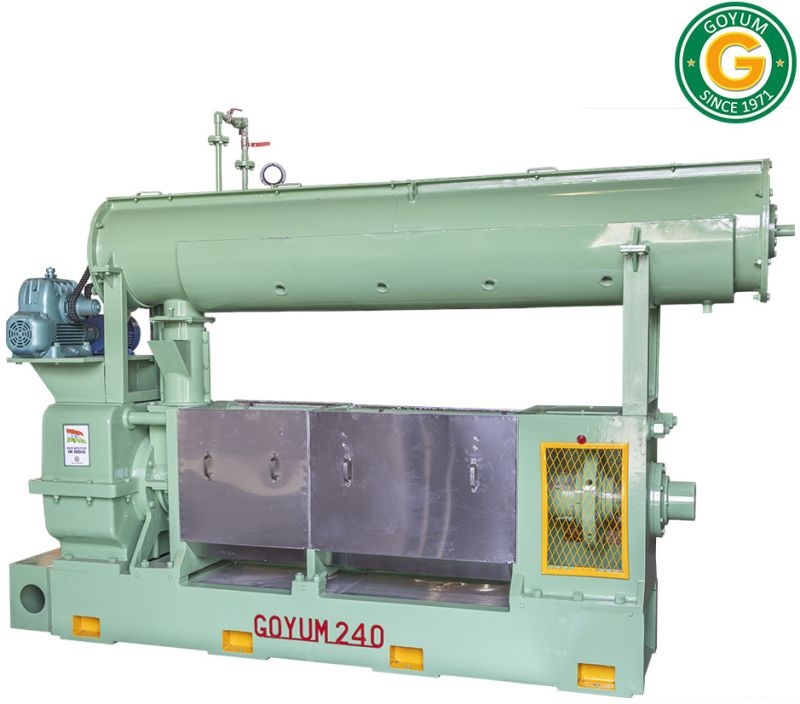

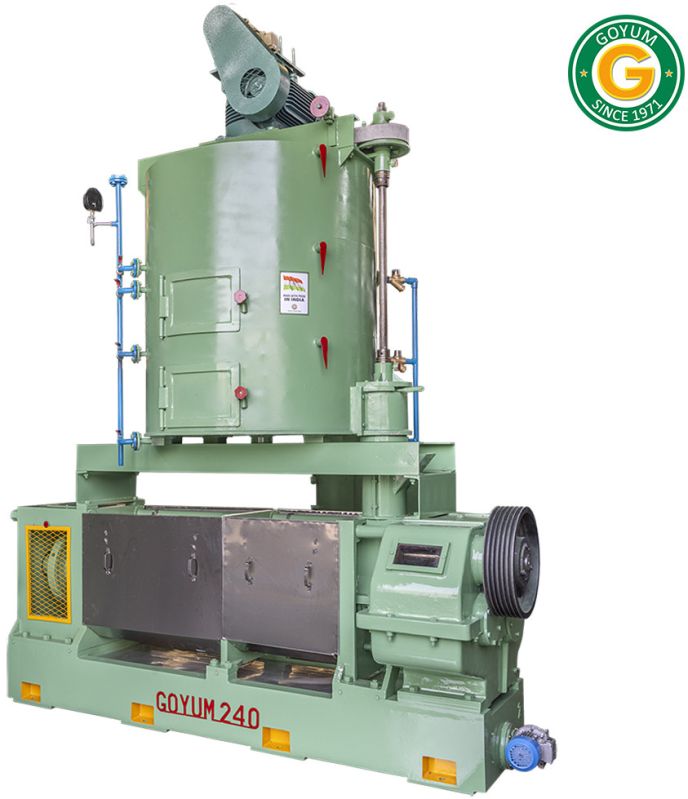

| GOYUM 240 | 22 – 25 TPD* | 3 Phase 75 HP for Expeller 3 Phase 5 HP for Kettle | 10.13 ft | 3.70 ft | 7.60 ft |
(TPD stand for Ton Per Day of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)
