Product Details
Country of Origin
India
Warranty
1 Year Against Manufacturing Defects
Type
Oil Press
Specialities
High Performance
Packaging Type
Wooden Box
Voltage
220V, 380V, 440V
Certification
ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
Usage
Multi Seed Oil Extraction
Operating Type
Semi Automatic
Condition
New
Color
Green
Driven Type
Electric
Brand Name
GOYUM
Crushing Capacity
5 – 6 Ton in 24 Hours
Expeller Motor
3 Phase, 20 HP, 960 RPM
Chamber Size
Dia 5” x 30” Long
Dimension (LxBxH)
8’12” x 2’11” x 6’12”
Weight
1850 kgs
Port
Mumbai / Mundra
Payment Terms
L/C, T/T
Delivery Time
15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.
Packaging Details
Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

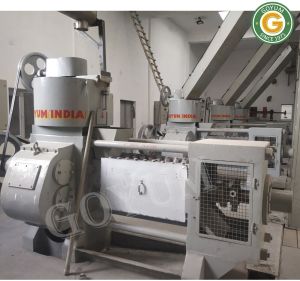

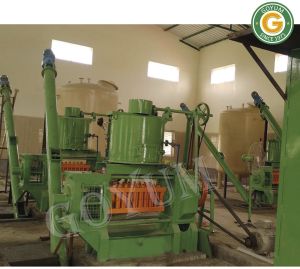

OIL EXTRUDER MACHINE is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction with Mild steel Helical Gears and Pinions |
|
Chamber |
Steel Fabricated of Three Sections. Horizontally fitted |
|
Worm Assembly |
Case Hardened |
|
Feeding Drum |
Single Stage. With & Without Heating Arrangement (as required). |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
Technical Specification
| Model | Capacity | Motor Power | Length | Breadth | Height |
| GOYUM 60 | 5 – 6 TPD* | 20 HP | 9.51 ft | 3.15 ft | 7.05 ft |
*(TPD stand for Ton Per Day (in 24 Hours) of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)
