Goyum Screw Press



1 piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Length 8’6"
Model Number GOYUM 150
Usage Multi Oilseeds
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Operating Type
Semi Automatic
Brand Name
GOYUM
Crushing Capacity
15 – 17 Ton in 24 Hours
Expeller Motor
3 Phase, 40 HP, 1440 RPM
Kettle Motor
For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM
Chamber Size
Dia 7.5” X Dia 6.5” X 45” Long
Height
13' (With Four Stage kettle), 11'5
Weight
4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle)
Breadth
4'7"
Port
Mumbai / Mundra
Delivery Time
15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.
Packaging Details
Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

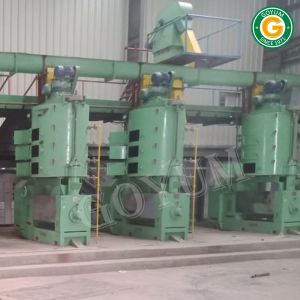

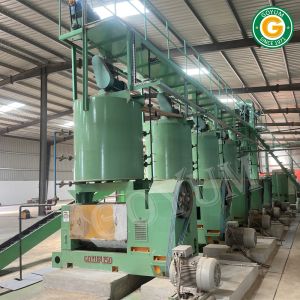

Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.



Features:

Bodies and Base

Fabricated from Mild steel

Gearbox

Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel.

Chamber

Steel Casting of Four Sections. Horizontally fitted

Size: Ø 7.5” X Ø 6.5” X 45” Long.

Worm Assembly

Hard Faced along with Discharge Ring and Compression Ring

Main Worm Shaft

Can be withdrawn out without Disturbing the Gear Box.

Kettle

3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.

Cake Thickness

Can be Adjusted on Running Machine.

Crammer Shaft

For extra Cramming of the Seed or Cake in the Feed Body.

Oil & Oil Cake

Superior Quality

Maintenance

Minimum

Crushing Capacity

Differs with the density of oilseeds & nuts and quantity of oil in it.

Yes! I am interested


Technical Specification

Model Capacity Motor Power Length Breadth Height
GOYUM 150 15 – 20 TPD* 3 Phase 40 HP for Expeller 3 Phase 7.5 HP for Kettle 8.66 ft 6.33 ft 12.16 ft

*(TPD stand for Ton Per Day (in 24 Hours) of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)
