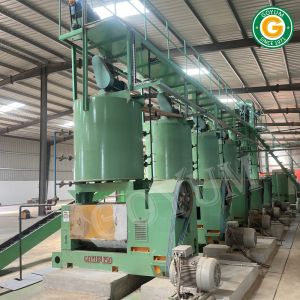

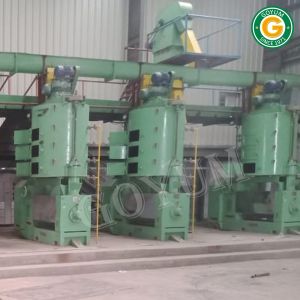

Sunflower Seed Oil Extraction Machine

1 piece (MOQ)

Business Type	Manufacturer, Exporter, Supplier
Brand Name	GOYUM
Operating Type	Semi Automatic
Model Number	GOYUM 150
Click to view more

Preferred Buyer From

Location

Worldwide

Product Details

Length

8’6”,8'6"

Crushing Capacity

15 – 17 Ton in 24 Hours

Expeller Motor

3 Phase, 40 HP, 1440 RPM

Kettle Motor

For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM

Chamber Size

Dia 7.5” X Dia 6.5” X 45” Long

Breadth

4’7”

Height

13’ (With Four Stage kettle), 11’5” feet (With Three Stage Kettle)

Weight

4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle)

Port

Mumbai / Mundra

Delivery Time

15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.

Packaging Details

Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

Sunflower Seed Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel.
Chamber	Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long.
Worm Assembly	Hard Faced along with Discharge Ring and Compression Ring
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Kettle	3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.
