Goyum Screw Press



Oil Pressing Machine

Link Copied
58.10 Lac - 62.25 Lac / 1 piece
Business Type Manufacturer, Exporter, Supplier
Model Number GOYUM 600
Country of Origin India
Brand Name GOYUM
Click to view more

Product Details

Driven Type
Electric
Color
Green
Condition
New
Operating Type
Semi Automatic
Usage
Multi Seed Oil Extraction
Certification
ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
Voltage
220V, 380V, 440V
Specialities
High Performance
Warranty
1 Year Against Manufacturing Defects
I Deal In
New Only
Crushing Capacity
40 - 45 Ton in 24 Hours in Pre-Pressing, 30 - 35 Ton in 24 Hours in Single & Final Crushing
Expeller Motor
3 Phase, 100 HP, 1440 RPM
Kettle Motor
3 Phase, 20 HP, 1440 RPM
Dimension (LxBxH)
14’ x 5’6” x 16’6”
Weight
11,500 kgs
Port
Mumbai / Mundra
Payment Terms
L/C, T/T
Delivery Time
20 – 25 days, but confirmed delivery time will be provided at the time of confirmation of orde
Packaging Details
Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

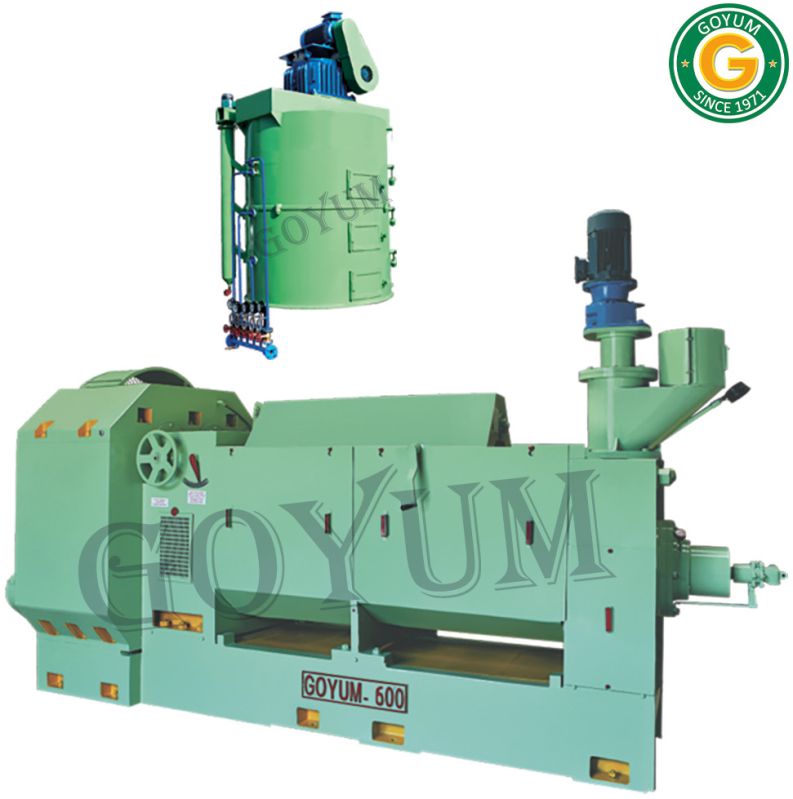

Oil Pressing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.



Features:



Bodies and Base

Fabricated from Mild steel

Gearbox

Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base.

Chamber

Material: Cast Steel. Vertically fitted

Feed End: - Size: Ø 9" x 36" Long,

Discharge End: - Size: Ø 8" x 36" Long

Worm Assembly

Hard Face welded along with Discharge Ring and Sliding Ring

Main Worm Shaft

Can be withdrawn out without Disturbing the Gear Box.

The Shaft is water cooled.

Crammer Shaft

For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor.

Round Kettle (Cooker)

4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.

Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers.

Cake Thickness

Can be Adjusted on Running Machine.

Oil & Oil Cake

Superior Quality

Maintenance

Minimum

Crushing Capacity

Differs with the density of oilseeds & nuts and quantity of oil in it.

Yes! I am interested


Technical Specification

Model Capacity Motor Power Length Breadth Height
GOYUM 600 50 – 60 TPD*  in Pre-pressing 30 – 35 TPD*  in Single & Final Crushing 3 Phase 100 HP for Expeller 12 ft 7 ft 7 ft
Cooker/Kettle -- 3 Phase 20 HP for Kettle 7 ft 7 ft 12.6 ft
