Goyum Screw Press



Cashew Nut Shell Liquid Oil Extraction Machine

1 piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Brand Name GOYUM
Operating Type Semi Automatic
Model Number GOYUM 240
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Country of Origin
India
Crushing Capacity
20 – 25 Ton in 24 Hours
Expeller Motor
3 Phase, 75 HP, 960 RPM
Kettle Motor
3 Phase, 5 HP, 1440 RPM
Chamber Size
Feed End: Dia 9
Weight
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle
Dimension (LxBxH)
10’2” x 4’1” x 7’7”
Port
Mumbai / Mundra
Delivery Time
15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.
Packaging Details
Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

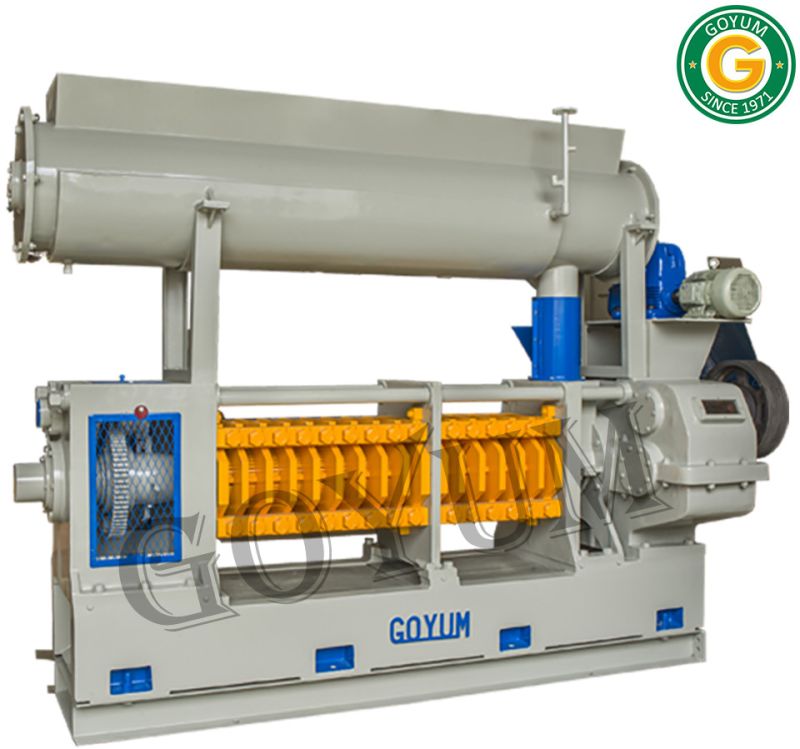

Cashew Nut Shell Liquid Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.



This Oil Extraction Machine comes with Round Kettle / Cooker for Export Market.



Features:

Bodies and Base

Fabricated from Mild steel

Gearbox

Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel

Chamber

Material: Cast Steel. Vertically fitted

Feed End: - Size: Ø 9" x 24" Long,

Discharge End: - Size: Ø 7" x 36" Long

Worm Assembly

Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber

Main Worm Shaft

Can be withdrawn out without Disturbing the Gear Box.

Round Kettle

3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.

(Long Kettle provided as per requirement)

Cake Thickness

Can be Adjusted on Running Machine.

Crammer Shaft

For extra Cramming of the Seed or Cake in the Feed Body.

Oil & Oil Cake

Superior Quality

Maintenance

Minimum

Crushing capacity

Differs with the density of oilseeds & nuts and quantity of oil in it.

Yes! I am interested


Technical Specification

Model Capacity Motor Power Length Breadth Height
GOYUM 150 15 – 20 TPD* 3 Phase 40 HP for Expeller 3 Phase 7.5 HP for Kettle 8.66 ft 6.33 ft 12.16 ft
