| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | GOYUM |
| Model Number | GOYUM MK 5C |
| Country of Origin | India |
| Click to view more | |
Product Details

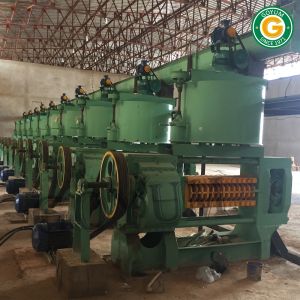

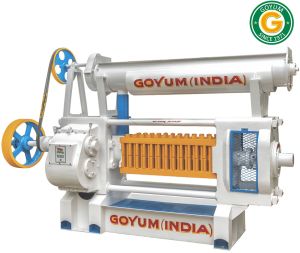

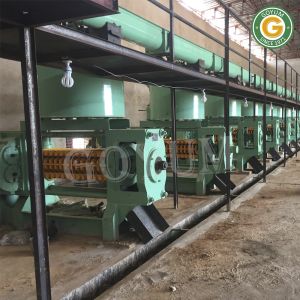

Oilseed Crushing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size: Ø7” X 44” Long, |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three or Four Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
Technical Specification
| Model | Capacity | Motor Power | Length | Breadth | Height |
| GOYUM MK-V-C | 20 TPD* | 3 Phase 50 HP Motor for Expeller 3 Phase 5 HP Motor for Kettle | 11.48 ft | 4.26 ft | 11.81 ft |
*(TPD stand for Ton Per Day of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)
