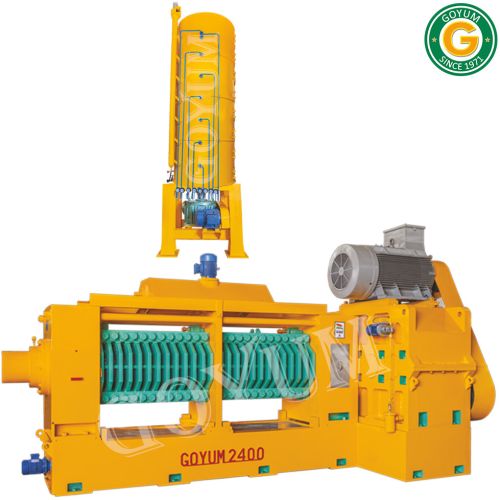

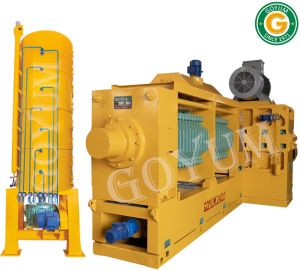

Large Scale Industrial Oil Extraction Machine

Link Copied

2.34 Crore - 2.51 Crore / piece

Edit

Business Type	Manufacturer, Exporter, Supplier
Application	Multi Seed Oil Extraction
Expeller Motor	3 Phase, 250 HP, 1440 RPM
Kettle Motor	3 Phase, 50 HP, 1440 RPM
Click to view more

Product Details

Dimension (LxBxH)

31' x 7'4" x 23'6"

Warranty

1 Year Against Manufacturing Defects

Model Number

GOYUM 2400

Brand Name

GOYUM

Certification

ISO 9001:2008 Certified, CE Certified, ISO 14001 :2015 Certified

Condition

New

Capacity

230 – 250 Ton In 24 Hours In Pre-Pressing (Capacity Differs With The Density Of Oilseeds & Nuts And

Machine Weight

46,000 Kgs (Expeller,Cooker And Supporting Structure)

Packaging Type

Wooden Box

Driven Type

Electric

Country of Origin

220V, 380V, 440V

Operating Type

Semi Automatic

Specialities

High Performance

I Deal In

NEW

Port

Mumbai / Mundra

Payment Terms

L/C, T/T

Delivery Time

35 – 40days, but confirmed delivery time will be provided at the time of confirmation.

Packaging Details

Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

Large Scale Industrial Oil Extraction Machine is used to extract oil from various types of edibles as well as non-edible oil seeds & nuts.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base.
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 16" x 50" Long, Discharge End:Size: Ø 16" x 50" Long, Opening and closing of chamber is motorized.
Worm Assembly	Hard Face welded along with Discharge Ring and Sliding Ring
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Chamber Lifting	Arrangement is motorized
Round Kettle (Cooker)	8 Stages with Steam Jackets of Dia. 78” for efficient cooking of seed. Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure fitted with kettle driving Gearbox and Motor.
Cake Thickness	Can be Adjusted manually after stopping the machine
Oil & Oil Cake	Superior Quality
Maintenance	Minimum

Technical Specification

Model	Capacity	Motor Power	Length	Breadth	Height
GOYUM 600	50 – 60 TPD* in Pre-pressing 30 – 35 TPD* in Single & Final Crushing	3 Phase 100 HP for Expeller	12 ft	7 ft	7 ft
Cooker/Kettle	--	3 Phase 20 HP for Kettle	7 ft	7 ft	12.6 ft
