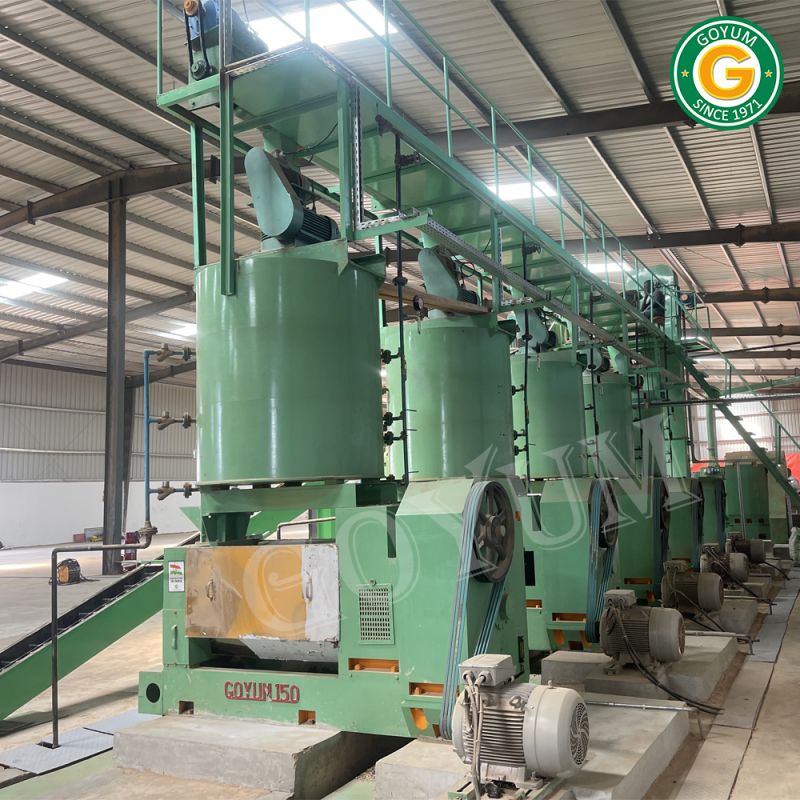

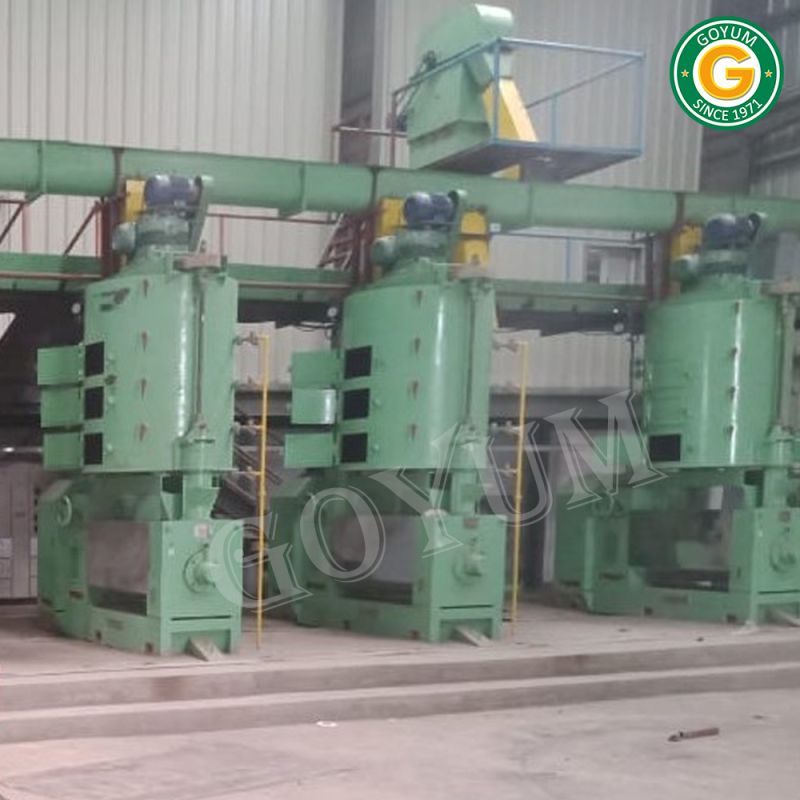

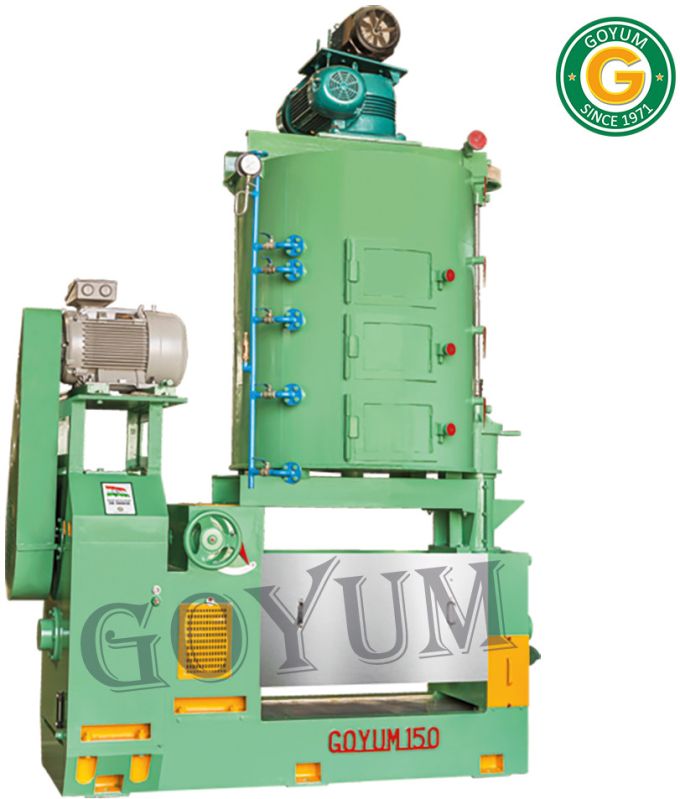

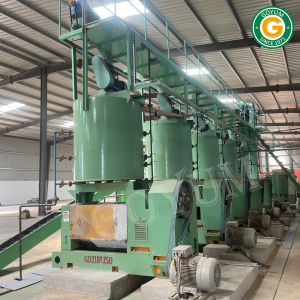

Goyum Screw Press


Screw Oil Press Machine


Screw Oil Press Machine
Business Type Manufacturer, Exporter, Supplier

Preferred Buyer From

Location Worldwide

With rich experience and expertise, we have been able to emerge as a leading trusted manufacturer, exporter and supplier of Screw Oil Press.



The Screw Oil Press machine is used to extract oil from edible as well as non-edible oil seeds & nuts. We check the Screw Oil Press on defined quality parameters to provide global standard Screw Oil Press to our valued customers at cost effective prices.



Features :

  • Steel Fabricated Base & Bodies.
  • Double Reduction Gear Box with Helical Gears of Cast Steel.
  • Cast Steel Chamber of Size : 45″ X 7.5″ X 6.5″.
  • Hard Faced Worm Assembly.
  • Cake thickness can be adjusted on running Machine
  • Main Worm Shaft can be withdrawn without disturbing the Gear Box.
  • Crammer Shaft Gives Extra Cramming of the Seed or Cake in the Feed Body.
  • Superior quality of Oil & Cake with less Residual Oil.
  • Low Maintenance.
  • Cooking Kettle : 48″ Diameter, 3 or 4 stage Vertical unit with fabricated shell, steam jackets, agitators to prevent burning of seed, level indicator flap, center shaft driven by independent geared motor, steam inlet, condensate outlet, pipes, valves, fittings & all necessary accessories.
Read More...


Technical Specification

Model Capacity Motor Power Length Breadth Height
GOYUM 150 15 – 20 TPD* 3 Phase 40 HP for Expeller 3 Phase 7.5 HP for Kettle 8.66 ft 6.33 ft 12.16 ft

*(TPD stand for Ton Per Day(in 24 Hours) of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)
