| Business Type | Manufacturer, Exporter, Supplier |
| Model | GOYUM MK 4 |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Click to view more | |
Product Details

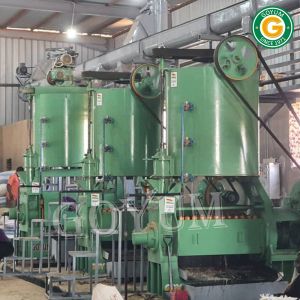

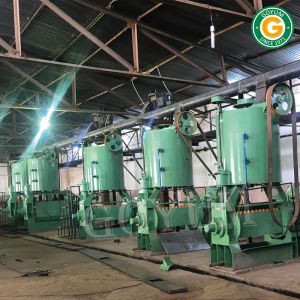

Fully Automatic Commercial Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
Technical Specification
| Model | Capacity | Motor Power | Length | Breadth | Height |
| GOYUM MK-IV | 12 – 15 TPD* | 3 Phase 40 HP for Expeller 3 Phase 5 HP for Kettle | 8.6 ft | 6.33 ft | 9 ft |
(TPD stand for Ton Per Day (in 24 Hours) of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.
