13.28 Lac - 14.94 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Machine Type | Both Hot and Cold press |
| Automation Grade | Semi Automatic |
| Motor Power | 30 HP |
| Click to view more | |
Product Details
Voltage
220V, 280V ,380V, 400V , 415V
Phase Type
Three Phase
Material
Cast Iron
Type
Oil Press
Brand Name
GOYUM
Packaging Type
Wooden Box
Country of Origin
220V, 380V, 440V
Operating Type
Semi Automatic
Crushing Capacity
8 – 10 Ton in 24 Hours
Expeller Motor
3 Phase, 30 HP, 1440 RPM
Chamber Size
Dia 6” x 33” Long
Dimension (LxBxH)
8’6” x 4’1” x 8’8”
Weight
4200 kgs
Model Number
GOYUM MK 3
Certification
ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
Usage/Application
Multi Seed Oil Extraction
Condition
New
Driven Type
Electric
Warranty
1 Year Against Manufacturing Defects
Features
High Performance
I Deal In
New Only
Port
Mumbai / Mundra
Payment Terms
L/C, T/T
Delivery Time
15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.
Packaging Details
Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

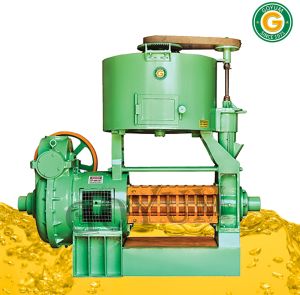

Oil Extractor Machine is used to extract oil from various type of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Three Sections. Vertically fitted. Size: Ø6" X 33” Long. |
|
Worm Assembly |
Case Hardened |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Single Stage. With Heating Arrangement (as required). Pipe fitting contains all required accessories. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
Technical Specification
| Model | Capacity | Motor Power | Length | Breadth | Height |
| GOYUM MK-III | 8 – 10 TPD* | 3 Phase 30 HP Motor | 8.53 ft | 5.41 ft | 8.69 ft |
*(TPD stand for Ton Per Day (in 24 Hours) of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)
