1 piece (MOQ)
Business Type | Manufacturer, Exporter, Supplier |
Country of Origin | India |
Power | 1-3kw |
Driven Type | Electric |
Click to view more |
Preferred Buyer From
Location | Worldwide |
Product Details

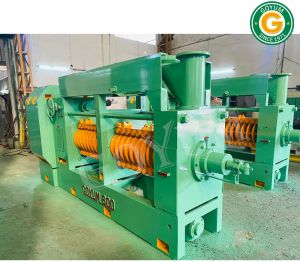

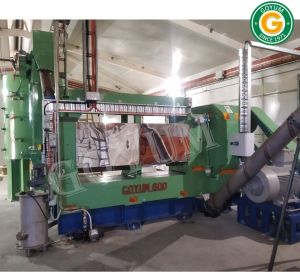

Corn Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
Bodies and Base |
Fabricated from Mild steel |
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 36" Long, Discharge End: - Size: Ø 8" x 36" Long |
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor. |
Round Kettle (Cooker) |
4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. |
Cake Thickness |
Can be Adjusted on Running Machine. |
Oil & Oil Cake |
Superior Quality |
Maintenance |
Minimum |
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
Technical Specification
Model | Capacity | Motor Power | Length | Breadth | Height |
GOYUM 600 | 50 – 60 TPD* in Pre-pressing 30 – 35 TPD* in Single & Final Crushing | 3 Phase 100 HP for Expeller | 12 ft | 7 ft | 7 ft |
Cooker/Kettle | 3 Phase 20 HP for Kettle | 7 ft | 7 ft | 12.6 ft |
