1 1 (MOQ)
Business Type | Manufacturer, Exporter, Supplier |
Condition | New |
Automatic Grade | Semi Automatic |
Weight | 5200 Kgs With Long Kettle,6500 Kgs With Three Stage Round Kettle |
Click to view more |
Preferred Buyer From
Location | Worldwide |
Product Details

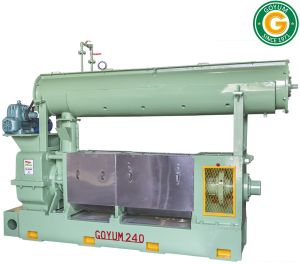

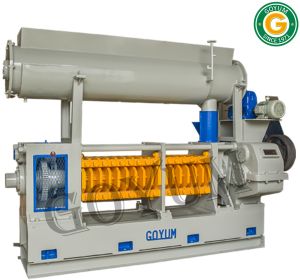

GOYUM 240 Oil Production Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
This Oil Extraction Machine comes with Round Kettle / Cooker for Export Market.
Features:
Bodies and Base |
Fabricated from Mild steel |
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel |
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 24" Long, Discharge End: - Size: Ø 7" x 36" Long |
Worm Assembly |
Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber |
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
Round Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement) |
Cake Thickness |
Can be Adjusted on Running Machine. |
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
Oil & Oil Cake |
Superior Quality |
Maintenance |
Minimum |
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
Technical Specification
Model |
Capacity |
Motor Power |
Length |
Breadth |
Height |
GOYUM 240 |
22 – 25 TPD* |
3 Phase 75 HP for Expeller |
10.13 ft |
3.70 ft |
7.60 ft |
