| Business Type | Manufacturer, Exporter, Supplier |
| Crushing Capacity | 15 – 17 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 40 HP, 1440 RPM |
| Kettle Motor | For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM |
| Click to view more | |

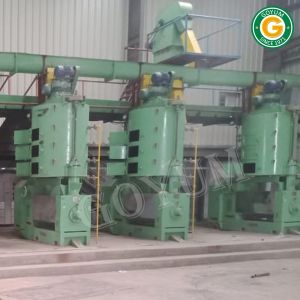

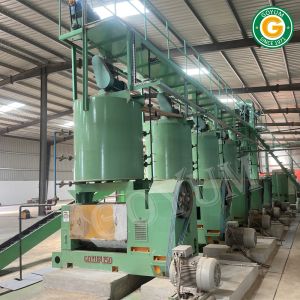

Product Details
Fully Automatic Industrial Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
Technical Specification
| Model | Capacity | Motor Power | Length | Breadth | Height |
| GOYUM 150 | 15 – 20 TPD* | 3 Phase 40 HP for Expeller 3 Phase 7.5 HP for Kettle | 8.66 ft | 6.33 ft | 12.16 ft |
(TPD stand for Ton Per Day(in 24 Hours) of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)
