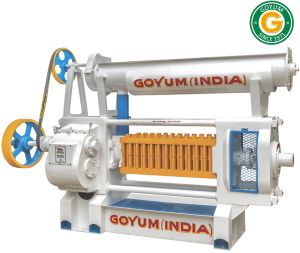

Goyum Screw Press



Coconut Oil Extraction Machine

1 piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Brand Name GOYUM
Automatic Grade Semi Automatic
Country of Origin India
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Model
GOYUM MK 5C
Crushing Capacity
18 – 20 Ton in 24 Hours
Expeller Motor
3 Phase, 50 HP, 1440 RPM
Kettle Motor
3 Phase, 5 HP, 1440 RPM
Chamber Size
Dia 7” X 44" Long
Dimension (LxBxH)
11’8” x 4’3” x 11’10”
Weight
5700 kgs
Port
Mumbai / Mundra
Delivery Time
15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.
Packaging Details
Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

Coconut Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.



Features:



Bodies

Material: Cast Iron

Gearbox

Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set

Chamber

Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size:  Ø7” X 44” Long,

Worm Assembly

Case Hardened with Cone Point

Main Worm Shaft

Can be drawn out without disturbing the Gearbox.

Cake Thickness

The Machine needs to be stopped for adjusting the Cake Thickness.

Kettle

Three or Four Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories

Crammer Shaft

For Extra Cramming of the seed or cake in the feed body.

Oil & Oil Cake

Superior Quality

Maintenance

Minimum

Crushing Capacity

Differs with the density of oilseeds & nuts and quantity of oil in it.

Yes! I am interested


Technical Specifications

Model Capacity Motor Power Length Breadth Height
GOYUM MK-V-C 20 TPD* 3 Phase 50 HP Motor for Expeller 3 Phase 5 HP Motor for Kettle 11.48 ft 4.26 ft 11.81 ft



*(TPD stand for Ton Per Day of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)
