Product Details

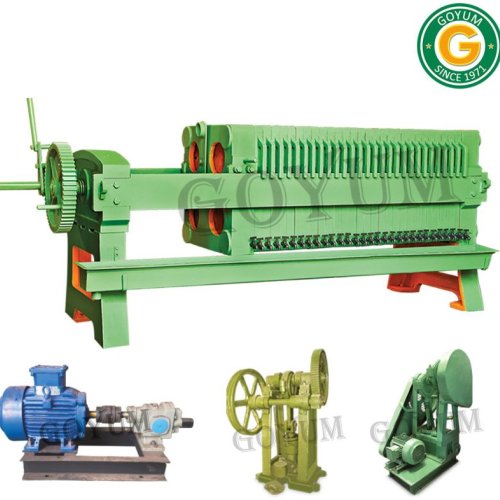

We manufacture and export a wide range of Filter Press Machines, they can be made in a wide range of sizes from small, medium-scale, to those with much larger capacities. These filters offer excellent filtration parameters at low running cost and purchase price. The maintenance of our filters is made easy thanks to their simple yet extremely robust design.
Technical Data of Filter Presses:
|
Size |
Wt. of Filter Press (kgs.) |
Filtration Area [Sq. Mtrs] |
Capacity* [Liters/Day] |
H.P |
No. Of Piston |
Size Of Plunger Pump |
|
36" x 36" x 36 Plates |
8000 |
30 |
40000 |
7.5 |
Double |
80mm |
|
30" x 30" x 30 Plates x 29 Frames |
5500 |
18 |
25000 |
7.5 |
Double |
80mm |
|
30" x 30" x 30 Plates |
4400 |
18 |
25000 |
5 |
Single |
80mm |
|
24" x 24" x 24 Plates x 23 Frames |
3000 |
10 |
10000 |
5 |
Double |
60mm |
|
24" x 24" x 30 Plates |
2750 |
15 |
12500 |
5 |
Double |
60mm |
|
24" x 24" x 24 Plates |
2350 |
10 |
10000 |
3 |
Single |
60mm |
|
18" x 18" x 18 Plates |
1100 |
4 |
5000 |
2 |
Single |
40 mm |
|
14" x 14" x 14 Plates |
650 |
2 |
3500 |
2 |
Single |
40mm |
|
12" x 12" x 12 Plates |
380 |
1.5 |
2500 |
0.5 |
Single |
30mm |
Technical Data
| Size | Wt. of Filter Press (kgs.) | Filtration Area [Sq. Mtrs] | Capacity* [Liters/Day] | H.P | No. Of Piston | Size Of Plunger Pump |
| 36" x 36" x 36 Plates | 8000 | 30 | 40000 | 7.5 | Double | 80mm |
| 30" x 30" x 30 Plates x 29 Frames | 5500 | 18 | 25000 | 7.5 | Double | 80mm |
| 30" x 30" x 30 Plates | 4400 | 18 | 25000 | 5 | Single | 80mm |
| 24" x 24" x 24 Plates x 23 Frames | 3000 | 10 | 10000 | 5 | Double | 60mm |
| 24" x 24" x 30 Plates | 2750 | 15 | 12500 | 5 | Double | 60mm |
| 24" x 24" x 24 Plates | 2350 | 10 | 10000 | 3 | Single | 60mm |
| 18" x 18" x 18 Plates | 1100 | 4 | 5000 | 2 | Single | 40 mm |
| 14" x 14" x 14 Plates | 650 | 2 | 3500 | 2 | Single | 40mm |
| 12" x 12" x 12 Plates | 380 | 1.5 | 2500 | 0.5 | Single | 30mm |
