Expeller / Press / Oil Extraction Machine
Leading Manufacturers, Exporters, Wholesaler, Trader and Manufacturers of Cashew Nut Shell Liquid Oil Extraction Machine, Castor Seed Oil Extraction Machine, Coconut Oil Extraction Machine, Corn Oil Extraction Machine, Cottonseed Oil Expeller, Fully Automatic Commercial Oil Expeller Machine, Fully Automatic Commercial Oil Press Machine, Fully Automatic Industrial Oil Extraction Machine, Fully Automatic Industrial Oil Processing Machine, Groundnut Oil Extraction Machine, Industrial Oil Press Machine, Large Scale Commercial Oil Expeller Machine, Large Scale Industrial Oil Extraction Machine, Mustard Seed Oil Expeller Machine, Oil Expeller Machine, Oil Extraction Machine, Oil Extractor Machine, Oil Extruder Machine, Oil Press Machine, Oil Pressing Machine, Oil Processing Machine, Oil Production Machine, Oilseed Crushing Machine, Palm Kernel Oil Expeller Machine, Screw Oil Press Machine, Sesame Seed Oil Extraction Machine, Shea Butter / Shea Nut Oil Extraction Machine, Soybean Oil Extraction Machine and Sunflower Seed Oil Extraction Machine from Ludhiana.
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Method | Hot and Cold Press Machine |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Operating Type | Semi Automatic |
| Automation Grade | Semi-Automatic |

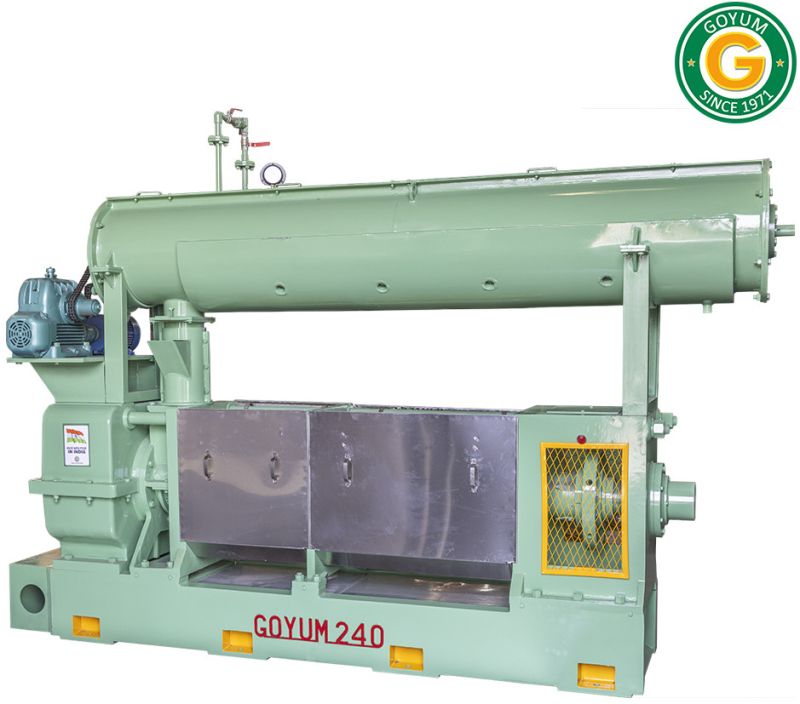

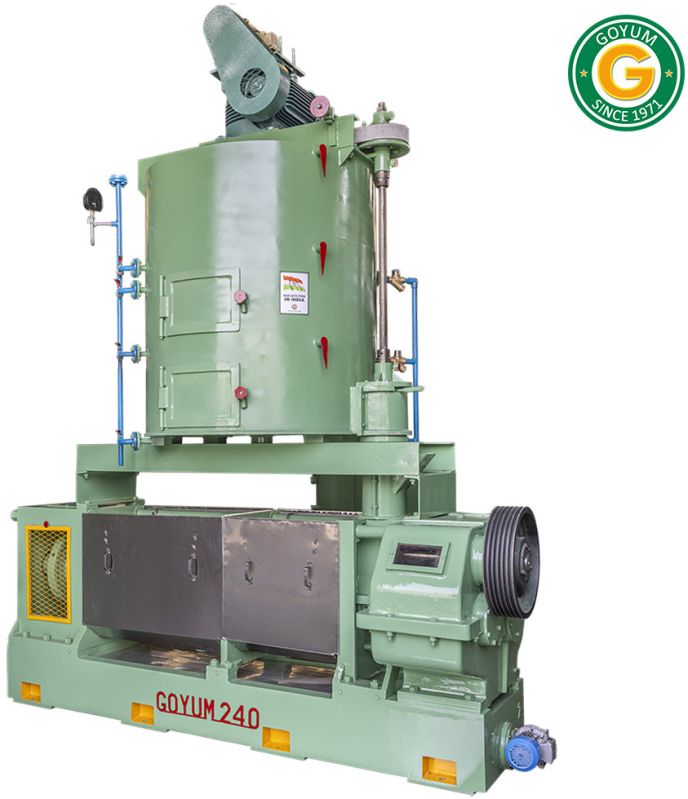

| Model Number | GOYUM 240 |
| Certification | ISO 9001:2008 Certified, CE Certified |
| Type | Oil Press |
| Phase | Three Phase |
| Country of Origin | India |
| Crushing Capacity | 20 – 25 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 75 HP, 960 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Feed End: Dia 9 |
| Weight | 5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle |
| Dimension (LxBxH) | 10’2” x 4’1” x 7’7” |
| I Deal In | New Only |
| Brand | GOYUM |
| Usage/Application | Multiseed Oil Extraction Plant |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Cashew Nut Shell Liquid Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 24" Long, Discharge End: - Size: Ø 7" x 36" Long |
|
Worm Assembly |
Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Round Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement) |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.
|
| Business Type | Manufacturer, Exporter, Supplier |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Operating Type | Semi Automatic |
| Automation Grade | Semi Automatic |
| Usage | Multi Seed Oil Extraction |
| Model Number | GOYUM MK 4 |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Packaging Type | Wooden Box |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| I Deal In | New Only |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Weight | 4500 kgs |
| Brand | GOYUM |
| Machine Type | Oil Press |
| Features | High Performance |
| Usage/Application | Multiseed Oil Extraction |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Castor Seed Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Method | Hot and Cold Press Machine |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green, Customisable |
| Condition | New |
| Operating Type | Semi Automatic |
| Automation Grade | Semi Automatic |
| Usage | Multi Seed Oil Extraction |
| Model Number | GOYUM MK 5C |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Packaging Type | Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box. |
| Type | Oil Press |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| Crushing Capacity | 18 – 20 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 7” X 44 |
| Dimension (LxBxH) | 11’8” x 4’3” x 11’10” |
| Brand | GOYUM |
| Usage/Application | Multiseed Oil Extraction |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Coconut Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.
Features:
|
Bodies |
Material: Cast Iron |
|
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
|
Chamber |
|
|
|
Worm Assembly |
Case Hardened with Cone Point |
|
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
|
Kettle |
Three Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
|
Oil & Oil Cake |
Superior Quality |
|
|
Maintenance |
Minimum |
|
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Method | Hot And Cold Press Machine |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Operating Type | Semi Automatic |
| Automation Grade | Semi Automatic |
| Usage | Multi Seed Oil Extraction |
| Model Number | GOYUM 600 |
| Certification | ISO 9001:2008 Certified, CE Certified |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Packaging Type | Wrapped In Polythene Sheet. For Exports Additionally Packed In Export Quality Wooden Box. |
| Type | Oil Press |
| Phase | Three Phase |
| Country of Origin | India |
| Crushing Capacity | 40 - 45 Ton in 24 Hours in Pre-Pressing, 30 - 35 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 100 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 20 HP, 1440 RPM |
| Dimension (LxBxH) | 14’ x 5’6” x 16’6” |
| Weight | 11,500 kgs |
| Brand | GOYUM |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 20 – 25 days, but confirmed delivery time will be provided at the time of confirmation of orde |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Corn Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 36" Long, Discharge End: - Size: Ø 8" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | GOYUM |
| Material | Cast Iron ,Mild Steel |
| Finishing | Painted |
| Driven Type | Electric |
| Condition | New |
| Operating Type | Semi Automatic |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Packaging Type | Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box. |
| Specialities | High Performance |
| Type | Oil Press |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Weight | 4500 kgs |
| Model Number | GOYUM MK 4 |
| Automation Grade | Semi Automatic |
| I Deal In | New Only |
| Usage/Application | Multi Seed Oil Extraction |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Cottonseed Oil Expeller is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Power Source | Electric |
| Source | Electric |
| Extraction Methods | Cold and Hot Press |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Automatic Grade | Semi Automatic |
| Operating Type | Semi Automatic |
| Certification | ISO 9001:2008 Certified, CE Certified |
| Machine Type | Commercial Expeller |
| Type | Oil Press |
| Phase | Three Phase |
| Country of Origin | India |
| Model | GOYUM MK 4 |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Weight | 4500 kgs |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Fully Automatic Commercial Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Power Source | Electric |
| Source | Electric |
| Extraction Methods | Cold and Hot Press |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Operating Type | Semi Automatic |
| Usage | Multi Seed Oil Extraction |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Machine Type | Commercial Expeller |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| Model | GOYUM 1500 |
| Crushing Capacity | 110 – 125 Ton in 24 Hours in Pre-Pressing, 45 – 55 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 150 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 25 HP, 1440 RPM |
| Dimension (LxBxH) | 30’ x 11’6” x 19’6” |
| Weight | 25,500 kgs (Expeller, Cooker and Supporting Structure |
| Automation Grade | Semi-Automatic |
| Usage/Application | Multiseed Oil Extraction Plant |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 25 – 30 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Fully Automatic Commercial Oil Press Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 12" x 36" Long, Middle:Size: Ø 11" x 36" Long, Discharge End: - Size: Ø 10" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
5 Stages with Steam Jackets of Ø66” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Chamber Lifting |
Manual |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.) |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Method | Hot and Cold Press Machine |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Customisable |
| Operating Type | Semi Automatic |
| Automation Grade | Semi Automatic |
| Usage | Multi Seed Oil Extraction |
| Model Number | GOYUM 150 |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Length | 13 Feet (With Four Stage Kettle),11.5 Feet (With Three Stage Kettle),8.6 Feet |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Packaging Type | Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box. |
| Type | Oil Press |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| I Deal In | NEW |
| Crushing Capacity | 15 – 17 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 40 HP, 1440 RPM |
| Kettle Motor | For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM |
| Chamber Size | Dia 7.5” X Dia 6.5” X 45” Long |
| Breadth | 4.7 feet |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Fully Automatic Industrial Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Machine Type | Both Hot and Cold press |
| Automation Grade | Semi-Automatic,Semi Automatic |
| Phase Type | Three Phase |
| Material | Mild Steel |
| Oil Extraction Method | Both Hot & Cold |
| Seeds Supported | Multi-Seed |
| Oil Yield Efficiency | High |
| Installation Type | Floor Mounted |
| Usage/Application | Industrial Use,Multi Seed Oil Extraction |
| Type | Oil Press |
| Brand | GOYUM |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Weight | 11,500 kgs |
| Condition | New |
| Packaging Type | Wooden Box |
| Driven Type | Electric |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| Operating Type | Semi Automatic |
| Features | High Performance |
| Crushing Capacity | 40 - 45 Ton in 24 Hours in Pre-Pressing, 30 - 35 Ton in 24 Hours in Single & Final Crushing |
| Model | GOYUM 600 |
| Dimension (LxBxH) | 14’ x 5’6” x 16’6” |
| Expeller Motor | 3 Phase, 100 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 20 HP, 1440 RPM |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Fully Automatic Industrial Oil Processing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 36" Long, Discharge End: - Size: Ø 8" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Packaging | Wooden Box |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Customisable |
| Condition | New |
| Operating Type | Automatic |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Type | Oil Press |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| Model | GOYUM 240 |
| Crushing Capacity | 20 – 25 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 75 HP, 960 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Feed End: Dia 9 |
| Weight | 5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle |
| Features | High Performance |
| Usage/Application | Multi Seed Oil Extraction |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Groundnut Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter |
| Application | Multiseed Oil Extraction |
| Power Source | Electric |
| Source | Electric |
| Extraction Methods | Cold and Hot Press |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Condition | New |
| Operating Type | Semi Automatic |
| Usage | Multi Seed Oil Extraction |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Capacity | 8 – 10 Ton In 24 Hours |
| Packaging Type | Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box. |
| Dimension (LxWxH) | 8’6” X 4’1” X 8’8” |
| Type | Oil Press |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| Expeller Motor | 3 Phase, 30 HP, 1440 RPM |
| Chamber Size | Dia 6” x 33” Long |
| Model Number | GOYUM MK 3 |
| Weight | 4200 kgs |
| Operating Mode | Semi Automatic |
| Automation Grade | Semi Automatic |
| Features | High Performance |
| Usage/Application | Multi Seed Oil Extraction |
| Product Code | GOYUM MK III |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Industrial Oil Press Machine is used to extract oil from various type of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Three Sections. Vertically fitted. Size: Ø6" X 33” Long. |
|
Worm Assembly |
Case Hardened |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Single Stage. With Heating Arrangement (as required). Pipe fitting contains all required accessories. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.
|
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Power Source | Electric |
| Source | Electric |
| Extraction Methods | Cold and Hot Press |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Automatic Grade | Semi Automatic |
| Operating Type | Semi Automatic |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 :2015 Certified |
| Capacity | 110 – 125 Ton In 24 Hours In Pre-Pressing(Capacity Differs With The Density Of Oilseeds & Nuts And Q |
| Machine Type | Commercial Expeller |
| Packaging Type | Wooden Box |
| Dimension (LxWxH) | 30’ X 11’6” X 19’6” |
| Machine Weight | 25,500 Kgs (Expeller,Cooker And Supporting Structure) |
| Phase | Three Phase |
| Country of Origin | India |
| Expeller Motor | 3 Phase, 150 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 25 HP, 1440 RPM |
| Model Number | GOYUM 1500 |
| I Deal In | NEW |
| Features | High Performance |
| Usage/Application | Multi Seed Oil Extraction |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 25 – 30 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Large Scale Commercial Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 12" x 36" Long, Middle: Size: Ø 11" x 36" Long, Discharge End: - Size: Ø 10" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
5 Stages with Steam Jackets of Ø66” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Chamber Lifting |
Manual |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.) |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Method | Hot and Cold Press Machine |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Customisable |
| Condition | New |
| Operating Type | Semi Automatic |
| Automation Grade | Semi Automatic |
| Usage | Multi Seed Oil Extraction |
| Model Number | GOYUM 2400 |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 :2015 Certified |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Capacity | 230 – 250 Ton In 24 Hours In Pre-Pressing (Capacity Differs With The Density Of Oilseeds & Nuts And |
| Packaging Type | Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box. |
| Type | Oil Press |
| Machine Weight | 46,000 Kgs (Expeller,Cooker And Supporting Structure) |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| I Deal In | NEW |
| Expeller Motor | 3 Phase, 250 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 50 HP, 1440 RPM |
| Dimension (LxBxH) | 31' x 7'4" x 23'6" |
| Brand | GOYUM |
| Features | High Performance |
| Usage/Application | Multi Seed Oil Extraction |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 35 – 40days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Large Scale Industrial Oil Extraction Machine is used to extract oil from various types of edibles as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 16" x 50" Long, Discharge End:Size: Ø 16" x 50" Long, Opening and closing of chamber is motorized. |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Chamber Lifting |
Arrangement is motorized |
|
Round Kettle (Cooker) |
8 Stages with Steam Jackets of Dia. 78” for efficient cooking of seed. Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure fitted with kettle driving Gearbox and Motor. |
|
Cake Thickness |
Can be Adjusted manually after stopping the machine |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Power Source | Electric |
| Source | Electric |
| Extraction Methods | Cold and Hot Press |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Automatic Grade | Semi Automatic |
| Operating Type | Semi Automatic |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Machine Type | Commercial Expeller |
| Packaging Type | Wooden Box |
| Type | Oil Press |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| I Deal In | NEW |
| Model Number | GOYUM MK 4 |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Weight | 4500 kgs |
| Features | High Performance |
| Usage/Application | Multi Seed Oil Extraction |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Mustard Seed Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Power Source | Electric |
| Source | Electric |
| Extraction Methods | Cold and Hot Press |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Automatic Grade | Semi Automatic |
| Operating Type | Semi Automatic |
| Certification | ISO 9001:2008 Certified, CE Certified |
| Machine Type | Commercial Expeller |
| Packaging Type | Wooden Box |
| Phase | Three Phase |
| Country of Origin | India |
| Model | GOYUM MK 4 |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Weight | 4500 kgs |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Method | Hot and Cold Press Machine |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Operating Type | Semi Automatic |
| Automation Grade | Semi Automatic |
| Model Number | GOYUM 150 |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Length | 8’6 |
| Type | Oil Press |
| Phase | Three Phase |
| Country of Origin | India |
| I Deal In | New Only |
| Crushing Capacity | 15 – 17 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 40 HP, 1440 RPM |
| Kettle Motor | For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM |
| Chamber Size | Dia 7.5” X Dia 6.5” X 45” Long |
| Height | 13' (With Four Stage kettle), 11'5 |
| Weight | 4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle) |
| Breadth | 4'7 |
| Brand | GOYUM |
| Features | High Performance |
| Usage/Application | MultiSeed Oil Extraction |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Machine Type | Both Hot and Cold press |
| Automation Grade | Semi Automatic |
| Motor Power | 30 HP |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Phase Type | Three Phase |
| Material | Cast Iron |
| Type | Oil Press |
| Brand Name | GOYUM |
| Packaging Type | Wooden Box |
| Country of Origin | 220V, 380V, 440V |
| Operating Type | Semi Automatic |
| Crushing Capacity | 8 – 10 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 30 HP, 1440 RPM |
| Chamber Size | Dia 6” x 33” Long |
| Dimension (LxBxH) | 8’6” x 4’1” x 8’8” |
| Weight | 4200 kgs |
| Model Number | GOYUM MK 3 |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Usage/Application | Multi Seed Oil Extraction |
| Condition | New |
| Driven Type | Electric |
| Warranty | 1 Year Against Manufacturing Defects |
| Features | High Performance |
| I Deal In | New Only |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Oil Extractor Machine is used to extract oil from various type of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Three Sections. Vertically fitted. Size: Ø6" X 33” Long. |
|
Worm Assembly |
Case Hardened |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Single Stage. With Heating Arrangement (as required). Pipe fitting contains all required accessories. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Machine Type | Both Hot and Cold press |
| Automation Grade | Semi-Automatic,Semi Automatic |
| Motor Power | 20 HP |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Phase Type | Three Phase |
| Material | Cast Iron |
| Oil Extraction Method | Both Hot & Cold |
| Features | High Performance |
| Crushing Capacity | 5 – 6 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 20 HP, 960 RPM |
| Chamber Size | Dia 5” x 30” Long |
| Dimension (LxBxH) | 8’12” x 2’11” x 6’12” |
| Type | Oil Press |
| Brand | GOYUM |
| Certification | CE Certified, ISO 9001:2008 Certified,ISO 14001 : 2015 Certified |
| Usage/Application | Multi Seed Oil Extraction |
| Weight | 1850 Kgs |
| Condition | New |
| Driven Type | Electric |
| Country of Origin | India |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Oil Extruder Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction with Mild steel Helical Gears and Pinions |
|
Chamber |
Steel Fabricated of Three Sections. Horizontally fitted |
|
Worm Assembly |
Case Hardened |
|
Feeding Drum |
Single Stage. With & Without Heating Arrangement (as required). |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Power Source | Electric |
| Source | Electric |
| Extraction Methods | Cold and Hot Press |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Automatic Grade | Semi Automatic |
| Power | 175 Hp |
| Operating Type | Semi Automatic |
| Usage | Multi Seed Oil Extraction |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Capacity | 25,500 kgs (Expeller, Cooker and Supporting Structure |
| Machine Type | Commercial Expeller |
| Packaging Type | Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box. |
| Type | Oil Press |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| Model | GOYUM 1500 |
| Crushing Capacity | 110 – 125 Ton in 24 Hours in Pre-Pressing, 45 – 55 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 150 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 25 HP, 1440 RPM |
| Dimension (LxBxH) | 30’ x 11’6” x 19’6” |
| Weight | 25,500 kgs (Expeller, Cooker and Supporting Structure |
| Product Code | GOYUM 1500 |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 25 – 30 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Oil Press Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 12" x 36" Long, Middle: Size: Ø 11" x 36" Long, Discharge End: - Size: Ø 10" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
5 Stages with Steam Jackets of Ø66” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Chamber Lifting |
Manual |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.) |
| Business Type | Manufacturer, Exporter, Supplier |
| Features | High Performance |
| Usage/Application | Multi Seed Oil Extraction |
| Brand | GOYUM |
| Machine Type | Screw Press |
| Voltage | 220V,280V,380V,400V,415V |
| Crushing Capacity | 40 - 45 Ton in 24 Hours in Pre-Pressing, 30 - 35 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 100 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 20 HP, 1440 RPM |
| Dimension (LxBxH) | 14’ x 5’6” x 16’6” |
| Weight | 11,500 kgs |
| Model Number | GOYUM 600 |
| I Deal In | New Only |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Condition | New |
| Driven Type | Electric |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| Operating Type | Semi Automatic |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 20 – 25 days, but confirmed delivery time will be provided at the time of confirmation of orde |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Oil Pressing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 36" Long, Discharge End: - Size: Ø 8" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Machine Type | Both Hot and Cold press |
| Automation Grade | Semi-Automatic |
| Motor Power | 55 HP |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Phase Type | Three Phase |
| Material | Cast Iron |
| Oil Extraction Method | Both Hot & Cold |
| Chamber Size | Dia 6-1/2” X 36” Long, Dia 7” X 44” Long, Dia 6-1/2” X 07-1/2”X 45” Long |
| Type | Oil Press |
| Brand | GOYUM |
| Weight | 4500 kgs |
| Driven Type | Electric |
| Country of Origin | India |
| Operating Type | Semi Automatic |
| Crushing Capacity | 12 – 15 Ton in 24 Hours |
| Model | GOYUM MK 4 |
| Dimension (LxBxH) | 8’8” x 4’6” x 9’ |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Oil Processing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: Ø6.1/2" X 36” Long, Ø7” X 44” Long, Ø6-1/2” X 07-1/2”X 45” Long. |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Oil Press |
| Certification | CE Certified, ISO 9001:2008, ISO 14001 : 2015 Certified |
| Usage/Application | Multi Seed Oil Extraction |
| Automation Grade | Semi Automatic |
| Model | GOYUM 240 |
| Crushing Capacity | 20 – 25 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 75 HP, 960 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Feed End: Dia 9 |
| Dimension (LxBxH) | 10’2” x 4’1” x 7’7” |
| Availability | 5200 Kgs With Long Kettle,6500 Kgs With Three Stage Round Kettle |
| Condition | New |
| Driven Type | Electric |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Oil Production Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 24" Long, Discharge End: - Size: Ø 7" x 36" Long |
|
Worm Assembly |
Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Round Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement) |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | GOYUM |
| Machine Type | Both Hot and Cold press |
| Automation Grade | Semi-Automatic |
| Motor Power | 55 HP |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Phase Type | Three Phase |
| Crushing Capacity | 18 – 20 Ton In 24 Hours |
| I Deal In | New Only |
| Model Number | GOYUM MK 5C |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 7” X 44 |
| Dimension (LxBxH) | 11’8” x 4’3” x 11’10” |
| Weight | 5700 kgs |
| Country of Origin | India |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Oilseed Crushing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size: Ø7” X 44” Long, |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three or Four Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Power Source | Electric |
| Source | Electric |
| Extraction Methods | Cold and Hot Press |
| Driven Type | Electric |
| Color | Blue |
| Condition | New |
| Automatic Grade | Semi Automatic |
| Operating Type | Semi Automatic |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Machine Type | Commercial Expeller |
| Packaging Type | Wooden Box |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| I Deal In | NEW |
| Model | GOYUM 15 |
| Capacity 1st Pressing | 15 – 17 Ton in 24 Hours |
| Capacity 2nd Pressing | 11 – 12 Ton in 24 Hours |
| Expeller Motor | 60 / 75 HP, 960 RPM |
| Dimension (LxBxH) | 10’5” x 4’65” x 4’67” |
| Weight | 5600 kgs |
| Type | Oil Press, Palm Oil Milling Machine |
| Brand Name | GOYUM |
| Automation Grade | Semi Automatic |
| Features | Long Life |
| Usage/Application | Palm Kernel Oil Extraction |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Palm Kernel Oil Expeller Machine is used to extract oil from Palm Kernel.
Features:
|
Bodies and Base |
Material: Cast Iron |
|
Gearbox |
Triple Reduction (Make: Premium / SEW) |
|
Chamber |
Steel Fabricated from Mild Steel Plates |
|
Worm Assembly |
Forged Steel. (Stainless Steel is optional.) |
|
V – Belts |
Make: Fenner or equivalent |
|
Main Worm Shaft |
Grade: En 19 |
|
Feed Hopper |
Cast Steel |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
|
Bearings |
Make: FAG or SKF |
|
Gear Couplings |
Make: Goyum |
| Business Type | Manufacturer, Exporter, Supplier |
| Power Source | Electric |
| Suitable For | Multiseed Oil Extraction |
| Material | Mild Steel |
| Driven Type | Electric |
| Condition | New |
| Operating Type | Semi Automatic |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Length | 8’6 |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Packaging Type | Wooden Box |
| Type | Oil Press |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| Model | GOYUM 150 |
| Crushing Capacity | 15 – 17 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 40 HP, 1440 RPM |
| Kettle Motor | For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM |
| Chamber Size | Dia 7.5” X Dia 6.5” X 45” Long |
| Breadth | 4’7” |
| Height | 13’ (With Four Stage kettle), 11’5” feet (With Three Stage Kettle) |
| Weight | 4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle) |
| Brand | GOYUM |
| Features | High Performance |
| Usage/Application | Multi Seed Oil Extraction |
| Product Code | GOYUM 150 |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Screw Oil Press Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Method | Hot and Cold Press Machine |
| Brand Name | GOYUM |
| Material | Mild Steel |
| Finishing | Painted |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Operating Type | Semi Automatic |
| Automation Grade | Semi Automatic |
| Usage | Multi Seed Oil Extraction |
| Model Number | GOYUM MK 5C |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Voltage | 220V, 280V ,380V, 400V , 415V |
| Specialities | Long Life, Easy To Operate |
| Type | Oil Press |
| Machine Weight | 5700 kgs |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| I Deal In | NEW |
| Crushing Capacity | 18 – 20 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 50 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 5 HP, 1440 RPM |
| Chamber Size | Dia 7” X 44 |
| Dimension (LxBxH) | 11’8” x 4’3” x 11’10” |
| Weight | 5700 kgs |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Sesame Seed Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size: Ø7” X 44” Long, |
|
Worm Assembly |
Case Hardened with Cone Point |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Three or Four Stagewith Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories |
|
Crammer Shaft |
For Extra Cramming of the seed or cake in the feed body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Crushing Capacity | 110 – 125 Ton in 24 Hours in Pre-Pressing, 45 – 55 Ton in 24 Hours in Single & Final Crushing |
| Expeller Motor | 3 Phase, 150 HP, 1440 RPM |
| Kettle Motor | 3 Phase, 25 HP, 1440 RPM |
| Dimension (LxBxH) | 30’ x 11’6” x 19’6” |
| Weight | 25,500 kgs (Expeller, Cooker and Supporting Structure |
| Brand Name | GOYUM |
| Driven Type | Electric |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 25 – 30 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Shea Butter / Shea Nut Oil Extraction Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 12" x 36" Long, Middle:Size: Ø 11" x 36" Long, Discharge End: - Size: Ø 10" x 36" Long |
|
Worm Assembly |
Hard Face welded along with Discharge Ring and Sliding Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. |
|
Crammer Shaft |
For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor. |
|
Round Kettle (Cooker) |
5 Stages with Steam Jackets of Ø66” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Chamber Lifting |
Manual |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.) |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Method | Hot and Cold Press Machine |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Operating Type | Semi Automatic |
| Automation Grade | Semi Automatic |
| Model Number | GOYUM 150 |
| Certification | ISO 9001:2008 Certified, CE Certified |
| Length | 8’6” |
| Type | Oil Press |
| Phase | Three Phase |
| Country of Origin | India |
| I Deal In | NEW |
| Crushing Capacity | 15 – 17 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 40 HP, 1440 RPM |
| Kettle Motor | For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM |
| Chamber Size | Dia 7.5” X Dia 6.5” X 45” Long |
| Breadth | 4’7” |
| Height | 13’ (With Four Stage kettle), 11’5” feet (With Three Stage Kettle) |
| Weight | 4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle) |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Soybean Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Multiseed Oil Extraction |
| Method | Hot and Cold Press Machine |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Green |
| Condition | New |
| Operating Type | Semi Automatic |
| Model Number | GOYUM 150 |
| Certification | ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified |
| Length | 8’6” |
| Type | Oil Press |
| Phase | Three Phase |
| Warranty | 1 Year Against Manufacturing Defects |
| Country of Origin | India |
| I Deal In | New Only |
| Crushing Capacity | 15 – 17 Ton in 24 Hours |
| Expeller Motor | 3 Phase, 40 HP, 1440 RPM |
| Kettle Motor | For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM |
| Chamber Size | Dia 7.5” X Dia 6.5” X 45” Long |
| Breadth | 4’7” |
| Height | 13’ (With Four Stage kettle), 11’5” feet (With Three Stage Kettle) |
| Weight | 4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle) |
| Brand | GOYUM |
| Usage/Application | Multi Seed Oil Extraction |
| Port | Mumbai / Mundra |
| Payment Terms | L/C, T/T |
| Delivery Time | 15 – 20 days, but confirmed delivery time will be provided at the time of confirmation. |
| Packaging Details | Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export) |
Sunflower Seed Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. |
|
Chamber |
Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. |
|
Worm Assembly |
Hard Faced along with Discharge Ring and Compression Ring |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Kettle |
3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing Capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
