13.28 Lac - 14.94 Lac / Piece
| Business Type | Manufacturer, Exporter |
| Application | Multiseed Oil Extraction |
| Power Source | Electric |
| Source | Electric |
| Click to view more | |
Product Details
Extraction Methods
Cold and Hot Press
Brand Name
GOYUM
Material
Mild Steel
Condition
New
Operating Type
Semi Automatic
Usage
Multi Seed Oil Extraction
Certification
ISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
Voltage
220V, 280V ,380V, 400V , 415V
Capacity
8 – 10 Ton In 24 Hours
Packaging Type
Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box.
Dimension (LxWxH)
8’6” X 4’1” X 8’8”
Type
Oil Press
Phase
Three Phase
Warranty
1 Year Against Manufacturing Defects
Country of Origin
India
Expeller Motor
3 Phase, 30 HP, 1440 RPM
Chamber Size
Dia 6” x 33” Long
Model Number
GOYUM MK 3
Weight
4200 kgs
Operating Mode
Semi Automatic
Automation Grade
Semi Automatic
Features
High Performance
Usage/Application
Multi Seed Oil Extraction
Product Code
GOYUM MK III
Port
Mumbai / Mundra
Payment Terms
L/C, T/T
Delivery Time
15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.
Packaging Details
Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

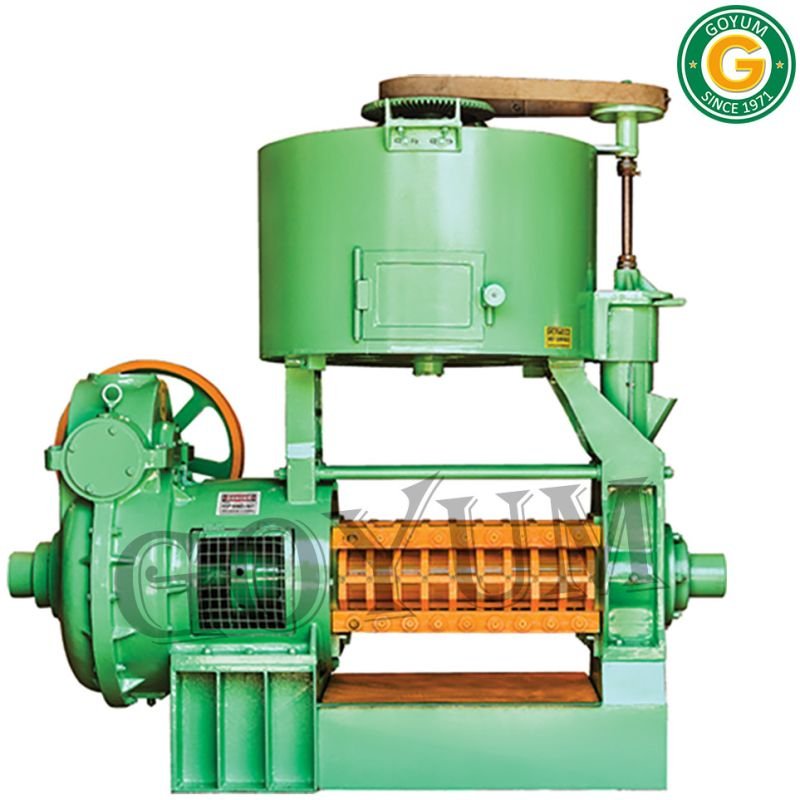

Industrial Oil Press Machine is used to extract oil from various type of edible as well as non-edible oil seeds & nuts.
Features:
|
Bodies |
Material: Cast Iron |
|
Gearbox |
Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set |
|
Chamber |
Steel Fabricated from Mild Steel Plates of Three Sections. Vertically fitted. Size: Ø6" X 33” Long. |
|
Worm Assembly |
Case Hardened |
|
Main Worm Shaft |
Can be drawn out without disturbing the Gearbox. |
|
Cake Thickness |
The Machine needs to be stopped for adjusting the Cake Thickness. |
|
Kettle |
Single Stage. With Heating Arrangement (as required). Pipe fitting contains all required accessories. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it.
|
