Goyum Screw Press



1 piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Type Oil Press
Power 175 Hp
Material Mild Steel
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Brand Name
GOYUM
Model
GOYUM 1500
Crushing Capacity
110 – 125 Ton in 24 Hours in Pre-Pressing, 45 – 55 Ton in 24 Hours in Single & Final Crushing
Expeller Motor
3 Phase, 150 HP, 1440 RPM
Kettle Motor
3 Phase, 25 HP, 1440 RPM
Dimension (LxBxH)
30’ x 11’6” x 19’6”
Weight
25,500 kgs (Expeller, Cooker and Supporting Structure
Port
Mumbai / Mundra
Delivery Time
25 – 30 days, but confirmed delivery time will be provided at the time of confirmation.
Packaging Details
Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

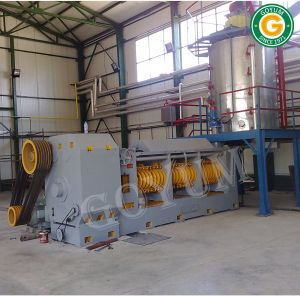

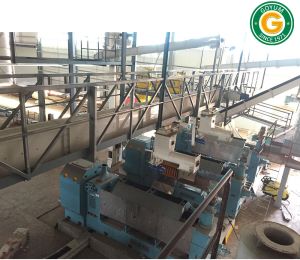

Oil Press Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.



Features:



Bodies and Base

Fabricated from Mild steel

Gearbox

Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base.

Chamber

Material: Cast Steel. Vertically fitted

Feed End: - Size: Ø 12" x 36" Long,

Middle:Size: Ø 11" x 36" Long,

Discharge End: - Size: Ø 10" x 36" Long

Worm Assembly

Hard Face welded along with Discharge Ring and Sliding Ring

Main Worm Shaft

Can be withdrawn out without Disturbing the Gear Box.

The Shaft is water cooled.

Crammer Shaft

For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor.

Round Kettle (Cooker)

5 Stages with Steam Jackets of Ø66” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.

Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers.

Supported separately on fabricated structure

Cake Thickness

Can be Adjusted on Running Machine.

Oil & Oil Cake

Superior Quality

Maintenance

Minimum

Chamber Lifting

Manual

Crushing Capacity

Differs with the density of oilseeds & nuts and quantity of oil in it.)

Yes! I am interested


Technical Specification

Model Capacity Motor Power Length Breadth Height
GOYUM 1500 125 – 150 TPD*  in Pre-pressing 45 – 55 TPD*  in Single & Final Crushing 3 Phase 170 HP for Expeller 16 ft 4.2 ft 6.6 ft
Cooker/Kettle   3 Phase 25 HP for Kettle 7 ft 7 ft 12.6 ft

*(TPD stand for Ton Per Day of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)
